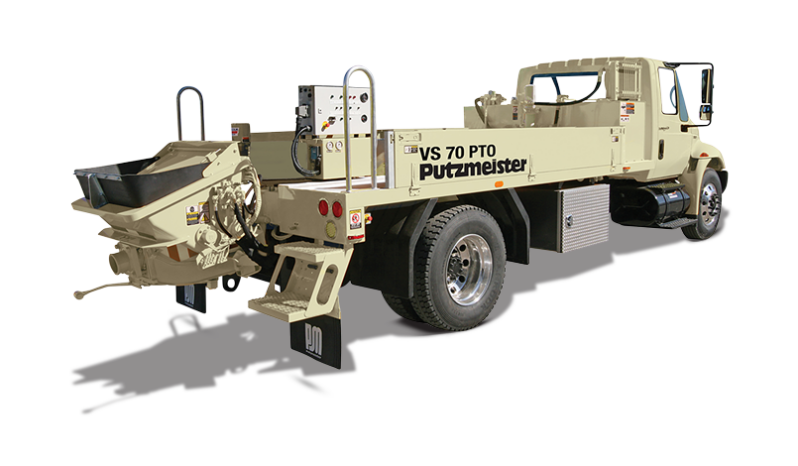

VS 70 PTO by Putzmeister

> Listings > New > VS 70 PTO by Putzmeister
$0

VS 70 PTO by Putzmeister

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
42
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
38mm
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note

TECHNICAL SPECIFICATIONS

TRUCK-MOUNTED LINE PUMPS SPECIFICATIONS

PERFORMANCE

Maximum volume output

57m³/hr

Maximum concrete pressure

78 bar

Maximum aggregate size

38mm

CHASSIS RATINGS

Front axle weight

3.847kg

Rear axle weight

4.885kg

Approximate GVW

8.732kg

TECHNICAL INFORMATION

S-Valve – cast

180 x 125mm

Hopper capacity

270L

Outlet diameter

125mm

Material cylinders

180 x 1.000mm

Maximum strokes per minute

42

Main hydraulic pump

Rexroth

Variable volume control

0 to full

PTO VERSION

Drive description

PTO-Driven from truck engine through G61 distribution gearbox

Hydraulic tank capacity

204 L

ENGINE SPECIFICATIONS

Truck engine

Deutz

Model

TCD2012L04m

Power

100 hp (75kW)

Cooling system

Water cooled

Hydraulic tank capacity

132L

All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
