VS 50 PTO by Putzmeister

> Listings > New > VS 50 PTO by Putzmeister
$0

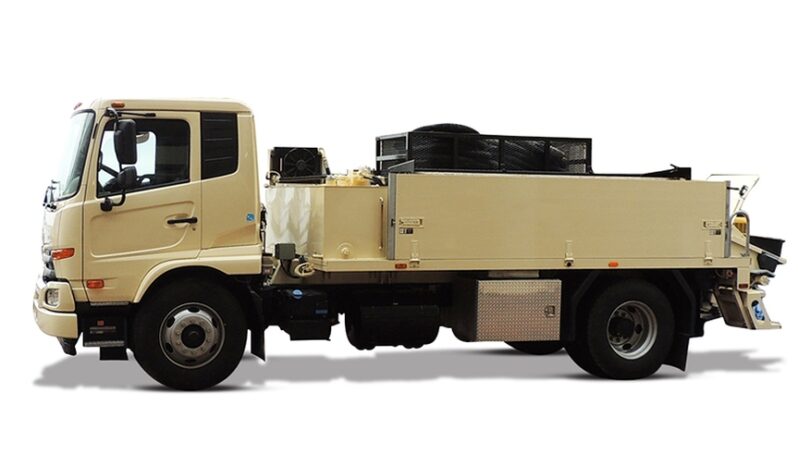

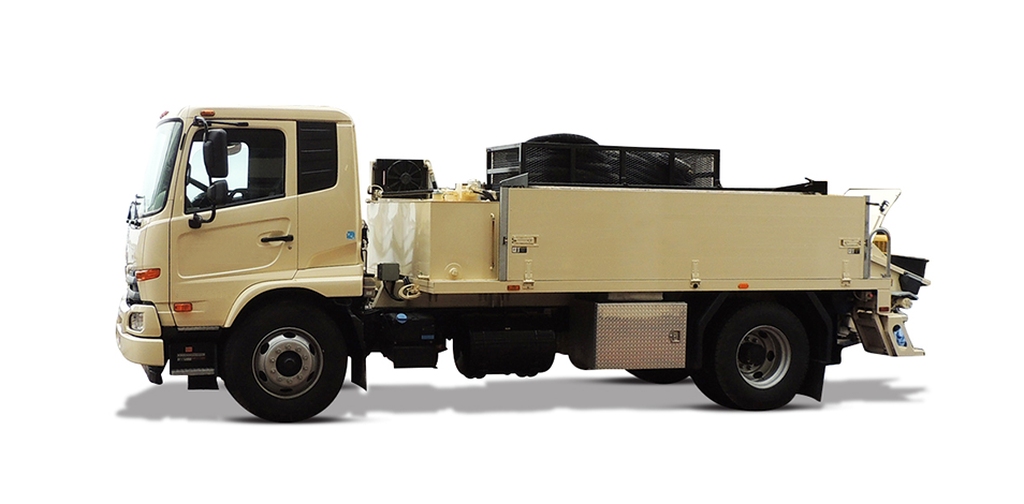

VS 50 PTO by Putzmeister

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
N/A
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
1.5 IN
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note

TECHNICAL SPECIFICATIONS

TRUCK-MOUNTED LINE PUMPS SPECIFICATIONS

PERFORMANCE

Maximum volume output

54 yd³/hr (41m³/hr)

Maximum concrete pressure

1,150 psi (79 bar)

Maximum aggregate size

1.5″ (38mm)

TECHNICAL INFORMATION

S-Valve – cast

6″ x 5″ (150 x 125mm)

Hopper capacity

9.5 ft³ (270L)

Outlet diameter

5″ HD (125mm)

Material cylinders

6″ x 39″ (150 x 1,000mm)

Maximum strokes per minute

44

Main hydraulic pump

Rexroth

Variable volume control

0 to Full

PTO VERSION

Drive description

PTO-Driven from truck engine through G61 distribution gearbox

Hydraulic tank capacity

54 gal (204L)

ENGINE SPECIFICATIONS

Manufacturer

Duetz

Model

TCD2012L042V

Power

131 hp (98 kW)

Cooling system

Water cooled

Hydraulic tank capacity

35 gal (132L)

All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
