56Z-5m by Putzmeister

56Z-5m by Putzmeister

ADDED: November 07, 2019

Concrete Pump Details

Boom Specifications
Condition
New Pump
Make
Putzmeister
Outrigger
All Hydraulic
Sections
5 sections
Vertical Reach
55.17m (181')
Reach From Front
46.43m (152'4")
Unfolding Height
15.60m (51'2")
Front Spread
9.30m (30' 6")
Pump Specifications
Output: Rod Side
160m³/hr (210 yd³/hr)
Pressure: Piston Side
130 bar• (1885 psi•)
Concrete Cylinder Diameter
230mm (9")
Concrete Cylinder Type
N/A
Stroke Length
2100 mm (83")
S-tube Size
N/A
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
Switching System
N/A
Hopper Capacity
N/A
Number of Strokes/Min
31
Output Control Range
N/A
General Specifications
Boom Control Valve
N/A
Vibrator
Standard
Water Pump
N/A
Water Tank
N/A
Seller Note

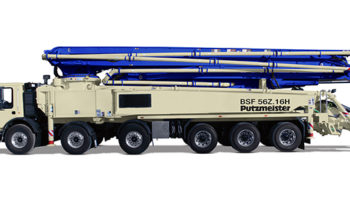

FIVE-SECTION, Z-FOLD BOOM ENHANCES PLACEMENT OPTIONS

Now, you can get the reach of the 50-meter class like never before without the weight restrictions. With a five-section boom, the 56Z still comes in at less than 100,000 pounds, giving you more options in a 50-meter class vehicle. The innovative, compact design provides a lighter unit with a small footprint that still delivers a vertical reach of 180 feet 10 inches and 163 feet 10 inches of horizontal reach. With the usual Putzmeister flexibility, strength, and dependability comes additional benefits. This includes the small but revolutionary RFID hopper grate switch and an optimized boom and structural components for weight-to-strength. This truck brings together world-class design and user value into a DOT-friendly package.
