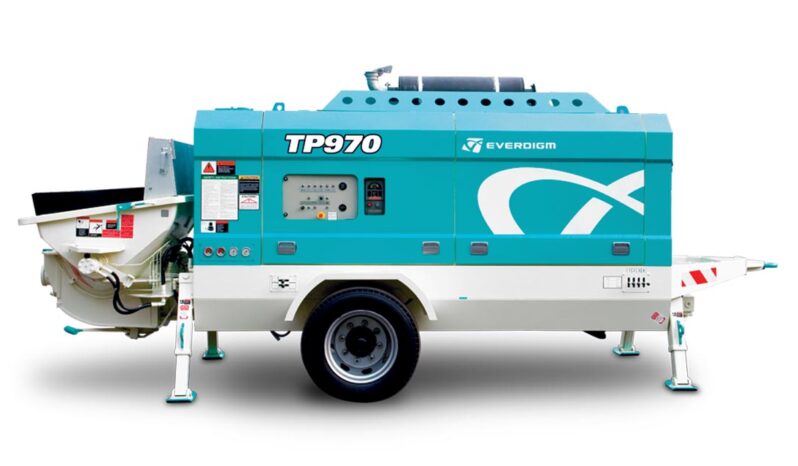

TP970 by CPE America
$0
TP970 by CPE America
Concrete Pump Details
Pump Specifications
Seller Note
FFH SYSTEM
Intelligent control system switches the direction of oil flows, allowing oil to freely flow without passing through any unnecessary valves.
- The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
- Our intelligent control system switches the direction of the oil flow, allowing oil to flow freely.
- Direct return of the oil to the pump prevents contamination of the hydraulic system
PUMP CELL
Various pump cell option suitable for each job site condition.
|
Pump cell |
Max.output (m³/h) |
Max.pressure (bar) |
Stroke (mm) |
Cylinder dia. (mm) |
Strokes (per min) |
Applicable models |
|
|
|
1208 |
81 |
71 |
1200 |
200 |
36 |
21m |
|
|
1409 |
90 |
70 |
1400 |
200 |
35 |
24-28m |
|
|
1609 |
90 |
70 |
1600 |
200 |
25 |
30m |
|
|
1611 |
110 |
85 |
1600 |
230 |
27 |
28-30m |
|
|
2114 |
140 |
70 |
2100 |
230 |
26 |
32-43m |
|
|
2116 |
160 |
85 |
2100 |
230 |
30 |
32-56m |
|
|
2516 |
160 |
85 |
250 |
230 |
25 |
63m |
SPECIFICATION
PUMP
| Model: | TP970 |
| Control System: | Closed (FFH) |
| Main Pump: | A4VG125 |
| Concrete cylinder (Dia. x mm): | Dia.200 x 1600 |
| Drive cylinder (Dia. x mm): | Dia.110 x 1600 |
| S-tube: | S2015(Dia.200-150mm) |
| Hopper volume (L): | 600 |
| Fuel tank capacity (L): | 250 |
| Hyd. Oil tank capacity (L): | 350 |
| Overall size (W x H x L) (mm): | 2100 x 2540 x 6000 |
| Weight (kg): | 5,700 |
| Axle / Tire: | 1 axle / 2 single tires |
| max. aggregate size (mm): | 40 |
ENGINE
| MODEL: | TP970 |
| MAKER: | DOOSAN(KOREA) |
| ENGINE MODEL: | PU086T |
| POWER: | 151 kW at 2200 rpm |
| Torque: | 826 Nm at 1400 rpm |
| Type: | Diesel, Tier-1 |
| Under max. concrete output | Under max. concrete pressure |
| Concrete output / pressure * | Rod side | 90 m3/hr / 50 bar | 67 m3/hr / 71 bar |
| Piston side | 60 m3/hr / 74 bar | 45 m3/hr / 106 bar | |
| Vertical reach ** | Rod side | 90 m | 102 m |
| Piston side | 153 m | 166 m |
