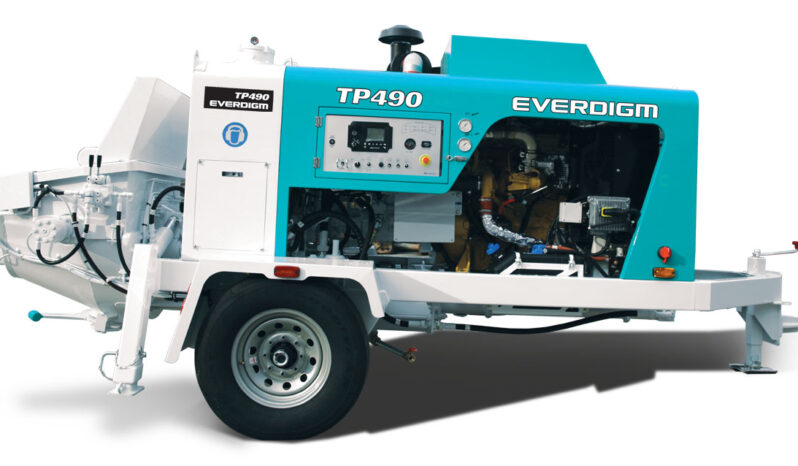

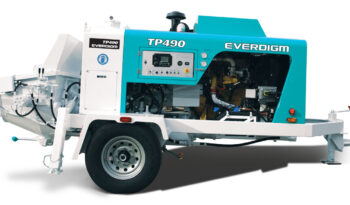

TP490 by CPE America

$0

TP490 by CPE America

Concrete Pump Details

Pump Specifications
Seller Note
14670999879661
  • The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
  • Our intelligent control system switches the direction of the oil flow, allowing oil to flow freely.
  • Direct return of the oil to the pump prevents contamination of the hydraulic system

PUMP CELL

Various pump cell option suitable for each job site condition.





Pump cell

Max.output

(m³/h)

Max.pressure

(bar)

Stroke

(mm)

Cylinder dia.

(mm)

Strokes

(per min)

Applicable models



1208

81

71

1200

200

36

21m



1409

90

70

1400

200

35

24-28m



1609

90

70

1600

200

25

30m



1611

110

85

1600

230

27

28-30m



2114

140

70

2100

230

26

32-43m



2116

160

85

2100

230

30

32-56m



2516

160

85

250

230

25

63m



SPECIFICATION

PUMP

Model: TP490
 Control System: OPEN
 Main Pump:K3VG112 (95cc)
 Concrete cylinder (Dia. x mm): 6” x 39” (150 x 1,000mm)
 Drive cylinder (Dia. x mm): 3.15” x 39” (80 x 1,000mm)
 S-tube: S1512 (Dia.150-120mm)
 Hopper volume (L): 79 gal (300L)
 Fuel tank capacity (L): 24 gal (90L)
 Hyd. Oil tank capacity (L): 63 gal (240L)
 Overall size (W x H x L) (mm): 71.6” x 87” x 190”
 Weight (kg): 7,165 lbs (3,250 kg)
 Axle / Tire: 1 axle / 2 single tires
 max. aggregate size: 1.6” (40mm)

ENGINE

MODEL:TP490
 MAKER:CAT
 ENGINE MODEL:C4.4 ACERT
 POWER:82 kW
 Torque:112 HP
 Type:Diesel, Tier-4
