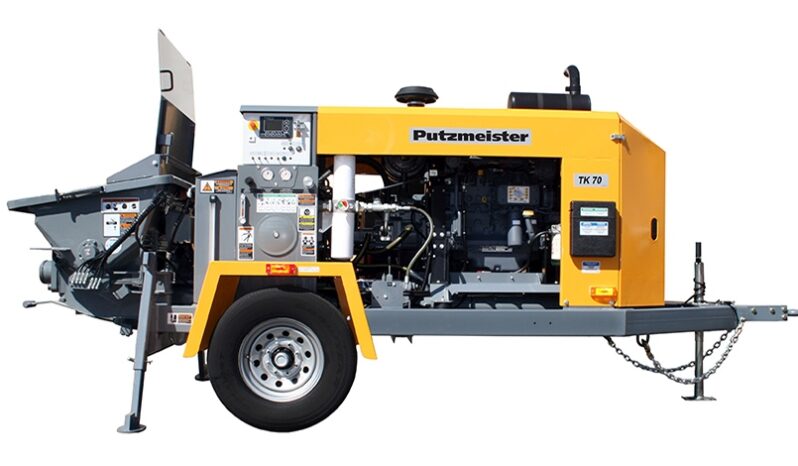

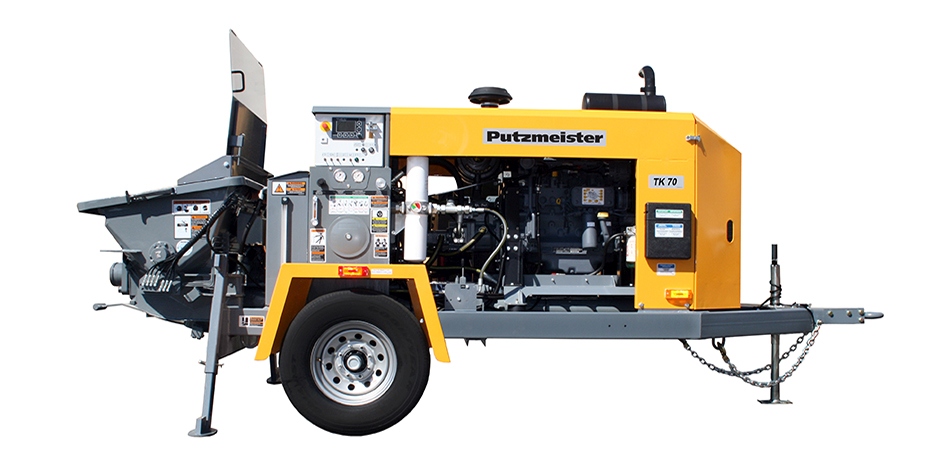

TK 70 TIER 3 by Putzmeister
TK 70 TIER 3 by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
Industries
Civil
Process type
Wet
Maximum volume output*
74 yd³/hr (57m³/hr)
Maximum concrete pressure
1,130 psi (78 bar)
Maximum aggregate size
1.50″ (38mm)
TECHNICAL INFORMATION
Material cylinders
7″ x 39″ (180 x 1,000mm)
Maximum strokes per minute
44
Variable volume control
0 to full
S-Valve (cast)
7″ x 5″ (180 x 125mm)
Number of shift cylinders
2
Hydraulic tank capacity
46 gal (175L)
Hopper height
49″ (1,245mm)
Hopper capacity
9.5 ft³ (270L)
Outlet diameter
5 HD (125mm)
ENGINE
Emission Standard
Tier 3
Manufacturer’s model
Deutz TCD2012L04m
Horsepower
96 hp (72kW)
Fuel tank capacity
26 gal (98L)
TRAILER
Axle
Single
Axle capacity
7,000 lbs (3,175kg)
Tires/load range
LT 235/85R16G
Brakes
Electric
Outriggers
Manual
DIMENSIONS
Length
191″ (4.85m)
Width
74.50″ (1.89m)
Height
90″ (2.28m)
Weight (approximate)
6,500 lbs (2,950kg)
*Optional electric versions have decreased output. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
