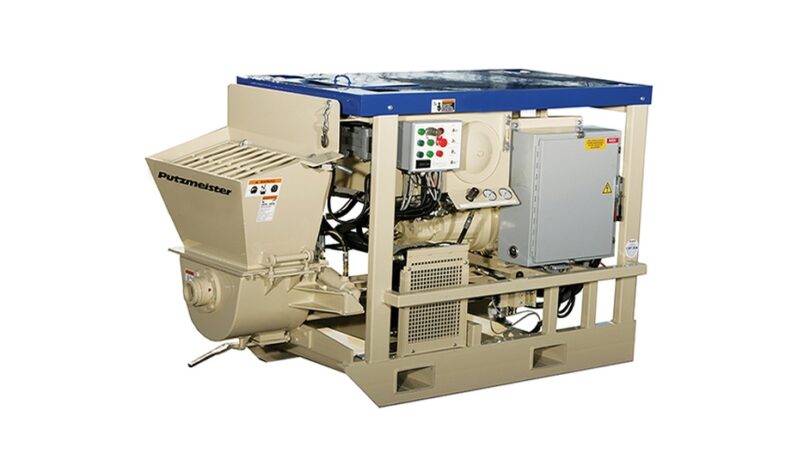

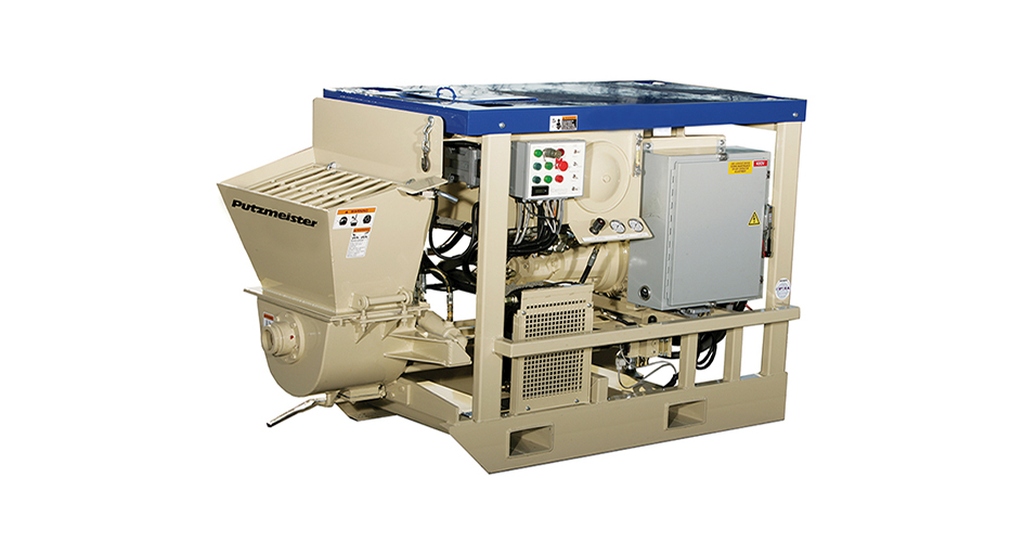

TK 7 by Putzmeister
TK 7 by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
APPLICATIONS
Industries
Refractory
Process Type
Wet
PERFORMANCE
Maximum volume output*
7 yd³/hr (4.6m³/hr)
Maximum concrete pressure
1,240 psi (85 bar)
Maximum aggregate size
0.75″ (19mm)
TECHNICAL INFORMATION
Material cylinders
2″ x 24″ (51x610mm)
Maximum strokes per minute
56
Variable volume control
0 to full
S-Valve (cast)
3″ x 3″ (76x76mm)
Number of shift cylinders
1
Hydraulic tank capacity
28 gal (105L)
Hopper height
42.1″ (1,070mm)
Hopper capacity
7.8 ft³ (220L)
Outlet diameter
3″ HD (76mm)
ENGINE
Manufacturer’s model
TEFC Motor
Horsepower
30 hp (22kW)
TRAILER
Standard mounting
Forklift Skid
DIMENSIONS
Length
87.4″ (2.22m)
Width
37.2″ (0.94m)
Height
54″ (1.37m)
Weight (approximate)
2,360 lb (1,070kg)
*Optional electric versions have decreased output. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
