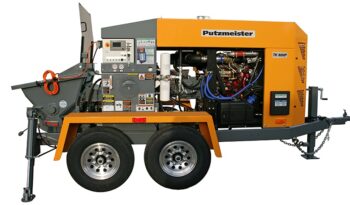

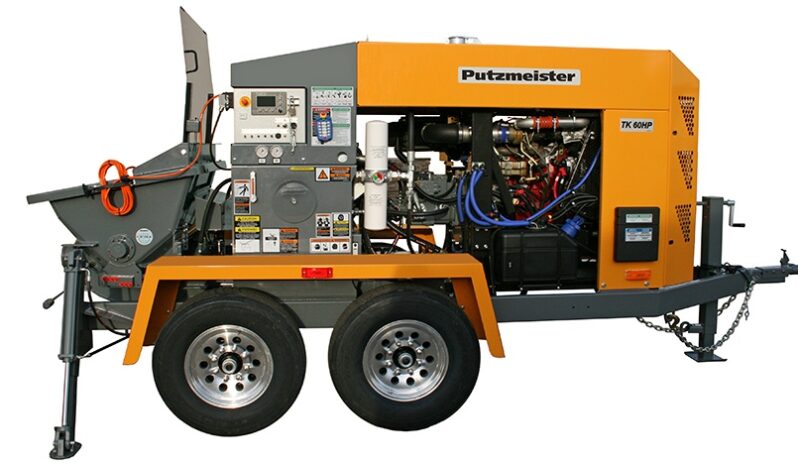

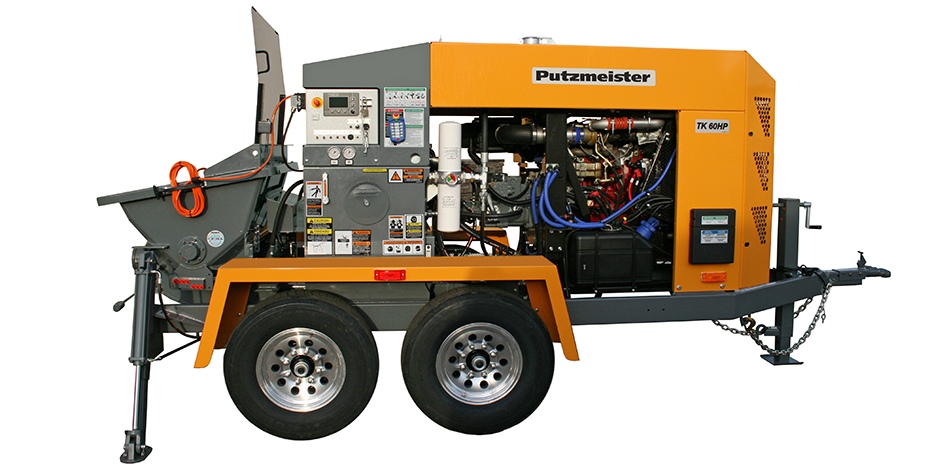

TK 60 HP TIER 4F by Putzmeister
TK 60 HP TIER 4F by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
APPLICATIONS
Industries
Refractory, Underground, and Civil
Process type
Wet
PERFORMANCE
Maximum volume output*
60 yd³/hr (46m³/hr)
Maximum concrete pressure
1,450 psi (100 bar)
Maximum aggregate size
1.50″ (38mm)
TECHNICAL INFORMATION
Material cylinders
6″ x 39″ (150 x 1,000mm)
Maximum strokes per minute
48
Variable volume control
0 to full
S-Valve (cast)
6″ x 5″ (150 x 125mm)
Number of shift cylinders
2
Hydraulic tank capacity
44 gal (167L)
Hopper height
49″ (1,245mm)
Hopper capacity
9.5 ft³ (270L)
Outlet diameter
5″ HD (125mm)
ENGINE
Manufacturer’s model (water-cooled)
Cummins QSF3.8
Horsepower
130 hp (97kW)
Fuel tank capacity
28 gal (105L)
TRAILER
DIMENSIONS
Length
191″ (4.85m)
Width
74.50″ (1.89m)
Height
87″ (2.21m)
Weight (approximate)
7,000 lbs (3,175kg)
DIMENSIONES
Largo
4,85 m
Ancho
1,89 m
Altura
2,21 m
Peso (aproximado)
3.175 kg
*Optional electric versions have decreased output. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
