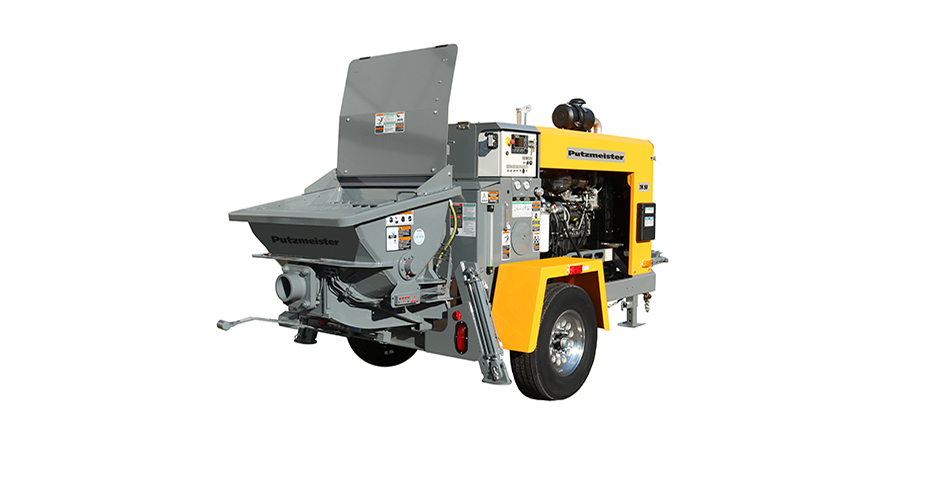

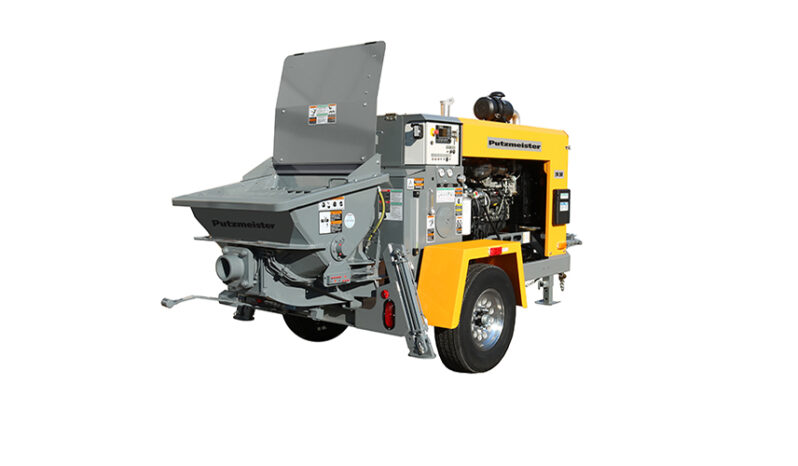

TK 40 TIER 4F by Putzmeister
TK 40 TIER 4F by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
PERFORMANCE
Maximum volume output*
40 yd³/hr (30m³/hr)
Maximum concrete pressure
1,150psi (79 bar)
Maximum aggregate size
1.50″ (38mm)
TECHNICAL INFORMATION
Material cylinders
6″ x 39″ (150 x 1,000mm)
Maximum strokes per minute
31
Variable volume control
0 to full
S-Valve (cast)
6″ x 5″ (150 x 125mm)
Number of shift cylinders
2
Hydraulic tank capacity
45 gal (175L)
Hopper height
49″ (1,245mm)
Hopper capacity
9.5ft³ (270L)
Outlet diameter
5″ HD (125mm)
ENGINE
Manufacturer’s model
Deutz TD2.9L4
Horsepower
74 hp (55kW)
Fuel tank capacity
26 gal (98L)
TRAILER
Axle
Single
Axle capacity
7,000 lbs (3,175kg)
Tires/load range
LT235/85R16G
Brakes
Electric
Outriggers
Manual
DIMENSIONS
Length
191″ (4.85m)
Width
74.5″ (1.89m)
Height
81.5″ (2.07m)
Weight (approximate)
6,000 lbs (3,040kg)
*Optional electric versions have decreased output. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
