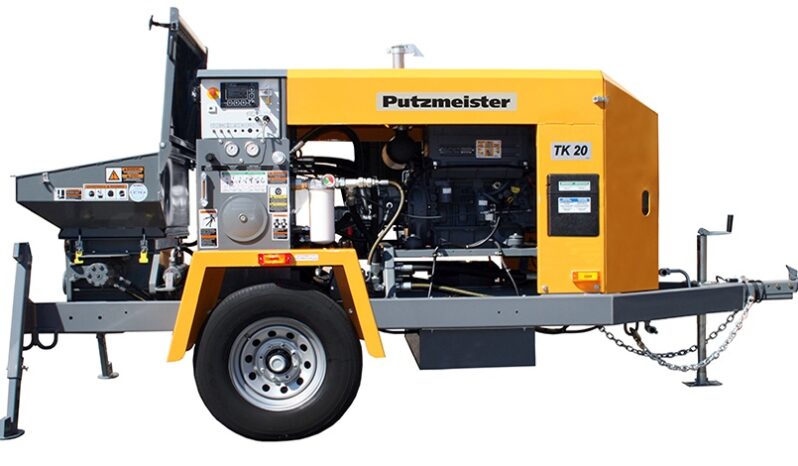

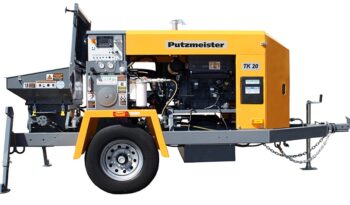

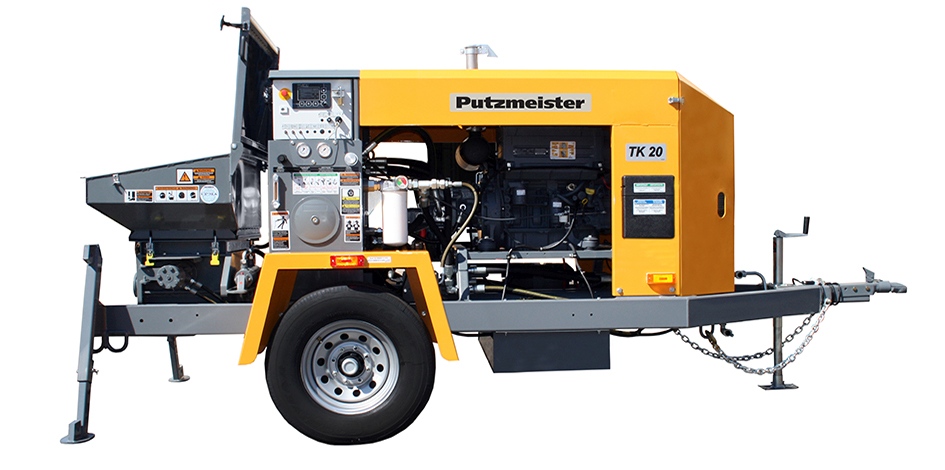

TK 20 by Putzmeister
TK 20 by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
Industries
Refractory, Underground, and Civil
Process type
Wet
PERFORMANCE
Maximum volume output
17 yd³/hr (13m³/hr)
Maximum concrete pressure
2,000 psi (138 bar)
Maximum aggregate size
1.00″ (25mm)
TECHNICAL INFORMATION
Material cylinders
4.50″ x 30″ (114 x 762mm)
Maximum strokes per minute
31
Variable volume control
0 to full
S-Valve (cast)
4.50″ x 4″ (114 x 100mm)
Number of shift cylinders
1
Hydraulic tank capacity
46 gal (175L)
Hopper height
49″ (1,245mm)
Hopper capacity
9.5 ft³ (270L)
Outlet diameter
4″ HD (102mm)
ENGINE
Emission Standard
Tier 4 International
Manufacturer’s model
Deutz TD2011L04i
Horsepower
68 hp (51kW)
Fuel tank capacity
22 gal (83L)
TRAILER
Axle
Single
Axle capacity
7,000 lbs (3,175kg)
Tires/load range
LT 235/85R16G
Brakes
Electric
Outriggers
Manual
DIMENSIONS
Length
174″ (4.42m)
Width
74.50″ (1.89m)
Height
78″ (1.98m)
Weight (approximate)
4,800 lbs (2,177kg)
*Optional electric versions have decreased output. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
