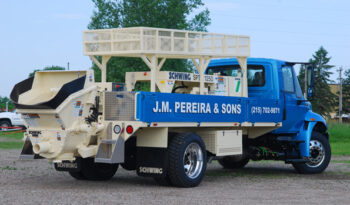

SPTO 1250 by Schwing
$0
SPTO 1250 by Schwing
Concrete Pump Details
Pump Specifications
Number of Strokes/Min
34
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
1.5 IN
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note
SPECIFICATIONS |
||
U.S. |
Metric |
|
| Concrete Output Per Hour | 95 cu yds | 73 cu m |
| Maximum Pressure on Concrete | 942 psi | 65 bar |
| Maximum Aggregate Size | 1.5 in | 37 mm |
| Concrete Cylinder Diameter | 7 in | 180 mm |
| Concrete Cylinder Stroke Length | 55 in | 1400 mm |
| Differential Piston/Rod Diameter | 3.15/ 2.16 in | 80/ 55 mm |
| Outlet Diameter | 5 in | 125 mm |
| Concrete Valve Type | Long Rock™ | |
| Shifting Cylinders | 2 | |
| Max. Pump Strokes Per Minute | 34 | |
| Volume Control | 0 to Maximum | |
| Hydraulic System | Open Loop | |
| Main Hydraulic Pump | A11VLO130 | |
| Hydraulic Pressure | 4785 psi | 330 bar |
| Hydraulic Tank Capacity | 98 gal | 371 l |
| Engine Power | 174 hp | 129.5 kW |
| Fuel Tank Capacity | 50 gal | 189 l |
| Hopper Capacity | 11 cu ft | .31 cu m |
| Remote Control Cable | 100 ft | 30.5 m |
| *Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice. |
