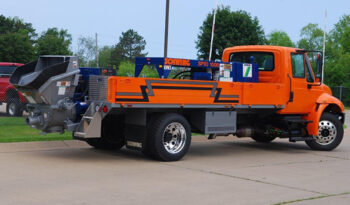

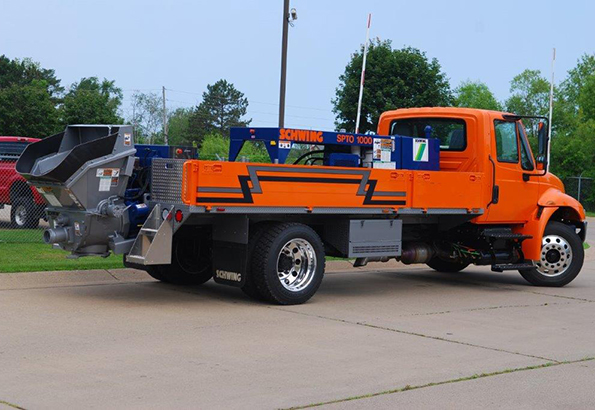

SPTO 1000 by Schwing
$0
SPTO 1000 by Schwing
Concrete Pump Details
Pump Specifications
Number of Strokes/Min
35
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
1.5 IN
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note
SPECIFICATIONS |
||
U.S. |
Metric |
|
| Concrete Output Per Hour | 70 cu yds | 54 cu m |
| Maximum Pressure on Concrete | 1100 psi | 76 bar |
| Maximum Aggregate Size | 1.5 in | 37 mm |
| Concrete Cylinder Diameter | 7 in | 180 mm |
| Concrete Cylinder Stroke Length | 39 in | 1000 mm |
| Differential Piston/Rod Diameter | 3.54/ 1.96 in | 90/ 50 mm |
| Outlet Diameter | 5 in | 125 mm |
| Concrete Valve Type | Long Rock | |
| Shifting Cylinders | 2 | |
| Max. Pump Strokes Per Minute | 35 | |
| Volume Control | 0 to Maximum | |
| Hydraulic System | Open Loop | |
| Main Hydraulic Pump | A11VO130 | |
| Hydraulic Pressure | 4350 psi | 300 bar |
| Hydraulic Tank Capacity | 70 gal | 265 l |
| Remote Control Cable | 100 ft | 30.5 m |
| *Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice. |
