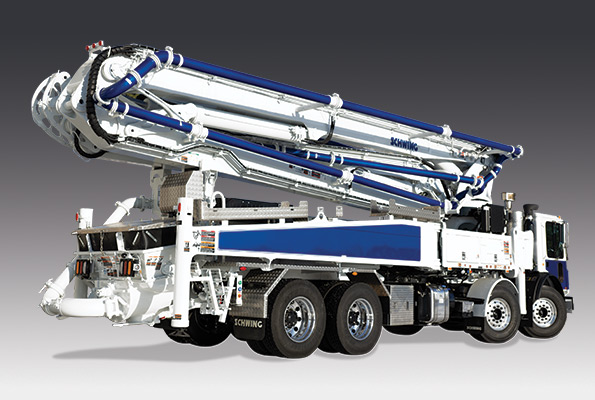

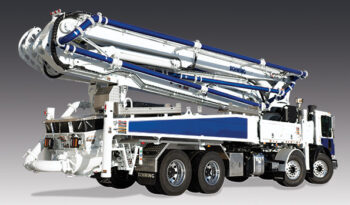

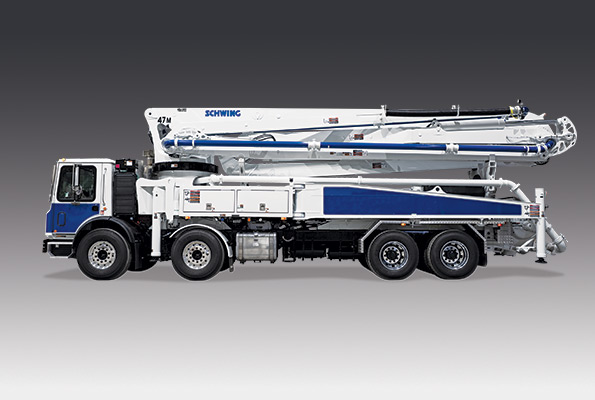

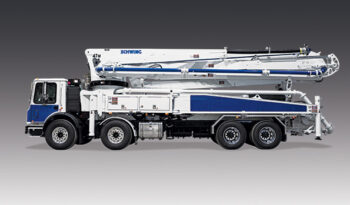

5-Section Hyper Extension Roll and Fold®

Schwing’s 5-section Hyper Extension Roll and Fold boom features extra articulation at every section including 215 degrees at the tip.

Super X Outriggers

Incorporates Schwing’s exclusive Super X Outriggers® that set-up fast and provide a compact and stable platform for pumping.

Exclusive Super X Outriggers® set-up fast and provide maximum stability with a smaller footprint for more effective pumping on tight job sites. These curved front single-stage outriggers telescope out and around obstacles allowing placement of the pump as close to the pour area as possible. This means maximum utilization of the boom reach and more yards of concrete poured from a single set-up. By retracting along the sides of the truck chassis, the Super X Outriggers® allow for the large diameter, long stroking material cylinders down the center of the pump that provide smooth operation and less wear than conventional concrete pumps.

VECTOR Controls

Valuable operational data at your fingertips to allow monitoring of the pumping process from the remote control box.

Operators are fully informed of the pump’s status even when they are hundreds of feet from the pump. No need to shutdown and return to the pump when an operator can view the following critical information at the remote box:

• Strokes per minute
• Hydraulic pressure
• PTO rpm
• Hydraulic oil temperature
• Hopper grate status
• Local/remote/ram change modes
• Switches out of neutral
• Emergency stop activation
• Low water tank

Significant features for fleet owners include one transmitter box for radio or cable operation, a small battery charger in the truck cab, 8-hour long work cycles with two-way communication, safe radio transmission with frequency hopping, easy change out of transmitters and one system for all types of booms.

A High level alarm notifies the operator of situations that may cause damage to the pump. The VECTOR will activate the Emergency Stop and the operator can evaluate the situation. In all cases the operator has the display on the remote box and the VECTOR graphic displays to assist in diagnosis.

Modular Design

VECTOR is proven durable and reliable, but in the event of physical damage, the modular design allows the entire control box to be unplugged and replaced in the field. All control systems will be fully operational with the replacement controller.

Rock Valve™

No other sequencing valve combines lowest cost per yard maintenance costs and ease of rebuilding as the Rock Valve™.

Only Schwing matches the correct valve type to the requirements of the pump:

Big Rock Valve™
