REINERT XR-636
REINERT XR-636
Concrete Pump Details

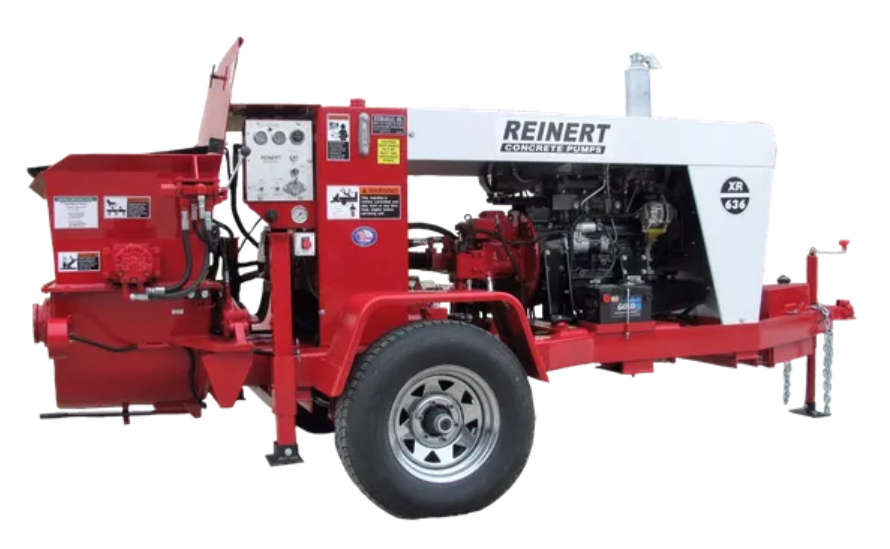

REINERT XR-636
All Reinert S-Tube Concrete Pumps include the Hinge Valve as standard equipment. Other standard features include a variable volume piston pump and a convenient remote control cable. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and little build-up. An optional radio remote control is available. Select models also include an optional remixer.
DETAILS: Reinert trailer-mounted Concrete Pumps are diesel-powered and range from 20 cyph to 60 cyph. These pumps are designed for shotcrete, pea-rock and structural mix pumping. Reinert pumps are ideal for pumping small slabs, multi-story slabs, block-filling, and shotcrete. For the best performance and value in concrete pumps, trust Reinert.
HINGE VALVE: The Reinert S-Tube Concrete and pea-rock pumps are built with our patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. The Hinge Valve, when in the open position, gives you access to the inside of the S-Tube. The piston cups are also visible and easy to change. When clean-up and maintenance go faster and easier, you will save time, labor, and money.
Weight Dry:………………………………….. 4,300 lbs.
Length:………………………………………… 162″
Width:………………………………………….. 70″
Hopper Height:…………………………….. 48″
Brakes:…………………………………………. Electric
Tires:……………………………………………. 15″
Axle:…………………………………………….. Single
Hopper Capacity:………………………….. 9 cu. ft.
Fuel Tank Capacity:………………………. 15 gal
Diesel Engine:………………………………. 80 HP
Hydraulic Tank Capacity:………………. 65 gal
Main Hydraulic Pump:………………….. Piston
Material Valve/Swing Tube:…………… S-Tube
Discharge Diameter Outlet:…………… 5”
Concrete Cylinder Stroke:…………….. 36″
Concrete Cylinder Diameter:…………. 6”
Maximum Aggregate:……………………. 1″ minus
Piston Head Pressure:………………….. 800 psi
Theoretical Output (C.Y.P.H.):……….. 50
Our specialty is small line trailer-mounted concrete pumps. Featuring our innovative Hinge Valve on all models. Whether you’re thinking about a low volume or high volume concrete pump, learn more about your choices.
Only Reinert Offers The E-Z Hinge
The amazing Reinert E-Z Hinge is a real breakthrough in concrete pump operation. Because clean-up is an essential part of any concrete project, when you can make that step go faster and easier, think of what you’ll save in time, labor and money. The same is true for any maintenance or inspection needed on th S-Tube. Also, improved clean-out just naturally extends the life of your pump and helps assure smooth operation. It all adds up to more reasons for choosing Reinert!
