REINERT GP-748

$0

REINERT GP-748

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
N/A
Concrete Output Max (theo.)
N/A
Seller Note

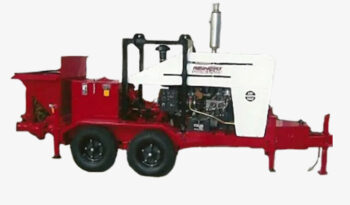

REINERT GP-748

Each pump is equipped with a mechanical stroke counter to calculate the amount of grout being pumped per stroke. Chrome plated reversible material cylinders and oil cooler are standard equipment. Our mechanical cycle system eliminates any electrical problems. An optional lifting bale for loading and unloading purposes is also available.

DETAILS: Our grout pumps are specifically designed for the auger cast pile contractor. These heavy duty pumps are built for auger cast applications and high volume grouting jobs. Reinert Grout Pumps are diesel-powered and range from 70 cyph to 90 cyph. If you need a dependable grout pump, trust Reinert; we’ve been making grout pumps for over 40 years.

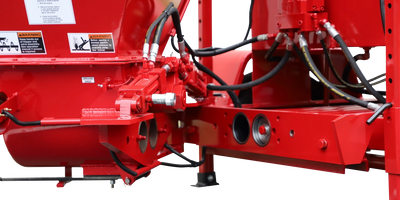

BALL VALVE ASSEMBLY: The Reinert Y-Assembly hinges away for additional clean-up and discharge ball inspection. In addition, the hopper hinges away for inlet ball inspection and maintenance. The piston cups are accessible from the hinged valve assembly for easy replacement. Our pumps are just simpler and more economical to operate.

Weight Dry:………………………………….. 6200 lbs.

Length:…………………………………………  220”

Width:………………………………………….. 70″

Hopper Height:…………………………….. 58”

Brakes:…………………………………………. Electric

Tires:……………………………………………. 14.5 x 900”

Axle:…………………………………………….. Dual

Hopper Capacity:…………………………..  9.5 cu. ft.

Fuel Tank Capacity:………………………. 37 gal

Diesel Engine:………………………………. 175 HP

Hydraulic Tank Capacity:………………. 142 gal

Main Hydraulic Pump:………………….. (2) Vane

Material Valve/Swing Tube:…………… Ball & Seat

Discharge Diameter Outlet:…………… 5”

Concrete Cylinder Stroke:……………… 48”

Concrete Cylinder Diameter:…………. 7”

Maximum Aggregate:……………………. 3/8” minus

Piston Head Pressure:………………….. 800

Theoretical Output (C.Y.P.H.):………… 90

Reinert Grout Pumps are 100% hydraulically operated. No electric is necessary to operate our pumps, providing you with reliable, simple power for pumping your grout applications and auger cast piles.

PLEASE EMAIL/CALL FOR CURRENT PRICING INFORMATION

Only Reinert Offers The E-Z Hinge

The amazing Reinert E-Z Hinge is a real breakthrough in concrete pump operation. Because clean-up is an essential part of any concrete project, when you can make that step go faster and easier, think of what you’ll save in time, labor and money. The same is true for any maintenance or inspection needed on th S-Tube. Also, improved clean-out just naturally extends the life of your pump and helps assure smooth operation. It all adds up to more reasons for choosing Reinert!
