P100HP by Transcrete

$0

P100HP by Transcrete

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
40
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
30 mm
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note

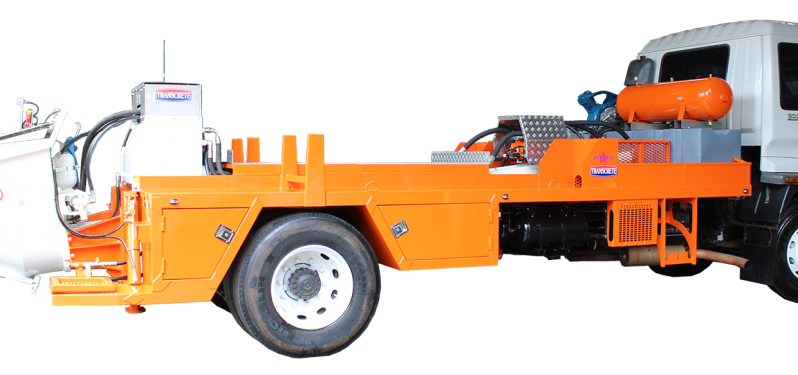

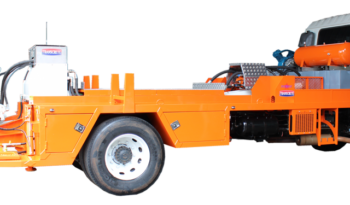

PATRIOT TRUCK MOUNTED P100HP

Standard Features

The Transcrete Patriot range provides a selection of high The Transcrete Patriot range provides a selection of high volume and high pressure truck mounted pumps. All models use the truck diesel engine and a full torque split. The Patriot pump has as an option the “soft push” selection mode. The soft pump gives a smooth delivery without pipeline of hose surge when discharging concrete at high volumes.

General Specifications

Specifications:P100HP
Maximum Output:80M3
Maximum Concrete Pressure:135 bar
Maximum aggregate size:30 mm
Concrete Cylinder Size:200 mm
Concrete Cylinder Stroke:1, 400 mm
Hydraulic Cylinder Size:100 mm
Maximum strokes per minute:40
Variable Volume Control:Yes
S-tube Casting Size:190 x 152
Hydraulic Cylinder Size:90 mm
Hydraulic Tank Capacity:            180 litre with inspection hatch
Hopper Capacity:650 litre
Hopper Height:800 mm
Hopper Outlet Size:152 mm
Engine Size:                            Must use truck engine &  P.T.O.
Fuel Tank Capacity:Based on truck fuel tank all models
Outriggers:                               Manual standard models (Optional hydraulic rear)
Length:Based on selected truck cab/chassis
Ideal truck wheelbase:4.2 metre to 5 metre depending on model selected
Height:Based on selected truck cab/chassis
Weight:6,500 Kg to 9,000 Kg
