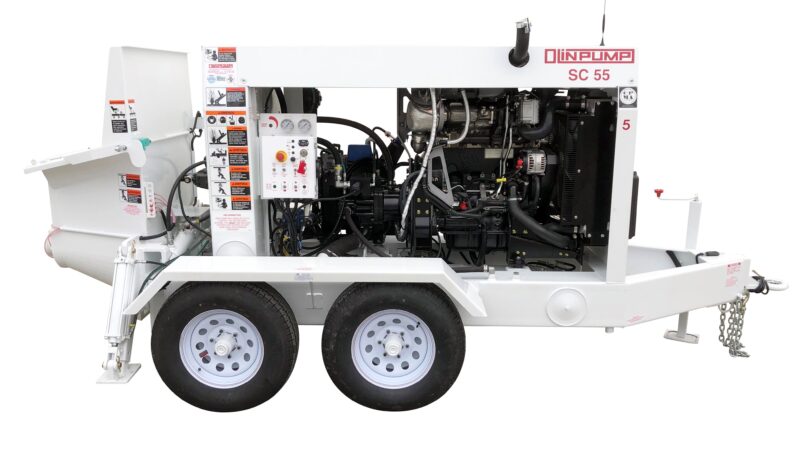

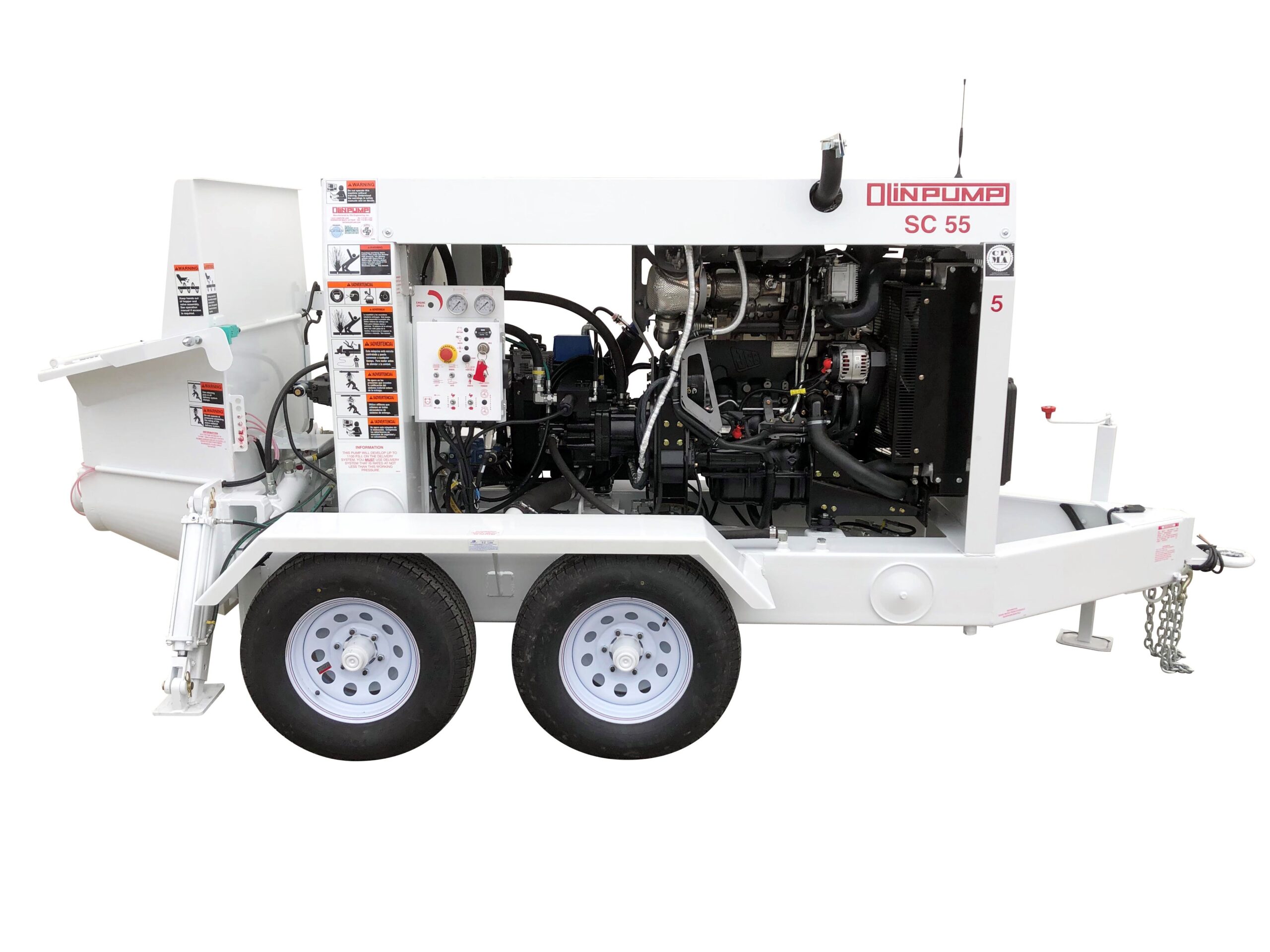

OLIN PUMP SC 55
$0
OLIN PUMP SC 55
Concrete Pump Details
Pump Specifications
Number of Strokes/Min
N/A
Concrete Output Max (theo.)
63
Seller Note
OLINPUMP SC 55
Weight Dry:………………………………….. 5750 lbs
Length:………………………………………… 205″
Width:………………………………………….. 175″
Hopper Height:…………………………….. 70″
Brakes:…………………………………………. Electric
Tires:……………………………………………. 225/75 R15
Axle:…………………………………………….. Tandem Torsion 5600 lbs
Hopper Capacity:………………………….. cu ft
Fuel Tank Capacity:………………………. 70 gal
Engine:………………………………………… JCB EcoMAX hp
Hydraulic Tank Capacity:………………. 81 gal
Main Hydraulic Pump:………………….. KPM K3VL
Material Valve/Swing Tube:…………… S-Tube
Discharge Diameter Outlet:…………… “
Concrete Cylinder Stroke:…………….. 36″
Concrete Cylinder Diameter:…………. “
Maximum Aggregate:……………………. “
Piston Head Pressure:………………….. 1230 psi
Theoretical Output (C.Y.P.H.):………… 63
