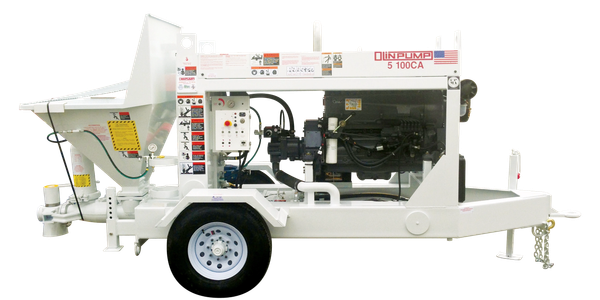

The 5 75 & 100’s 8″ delivery cylinders combined with the Millennium Series manifold, handle high sack structural 1/2″ minus & grout mixes, making them the perfect choice for Auger Cast Pile and large slurry backfill jobs.

Weight Dry:………………………………….. 6130 lbs

Length:………………………………………… 175″

Width:………………………………………….. 70″

Hopper Height:…………………………….. 57″

Brakes:…………………………………………. N/A

Tires:……………………………………………. 236/80 R16

Axle:…………………………………………….. Torsion 7000 lbs

Hopper Capacity:………………………….. 9 cu ft

Fuel Tank Capacity:………………………. 27 gal

Engine:………………………………………… JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:………………. 89 gal

Main Hydraulic Pump:………………….. KPM K3VL140

Material Valve:……………………………… Ball

Discharge Diameter Outlet:…………… 4″

Concrete Cylinder Stroke:…………….. 36″

Concrete Cylinder Diameter:………… 8″

Maximum Aggregate:…………………… 1/2″

Piston Head Pressure:…………………. 900 psi

Theoretical Output (C.Y.P.H.):……….. 130
