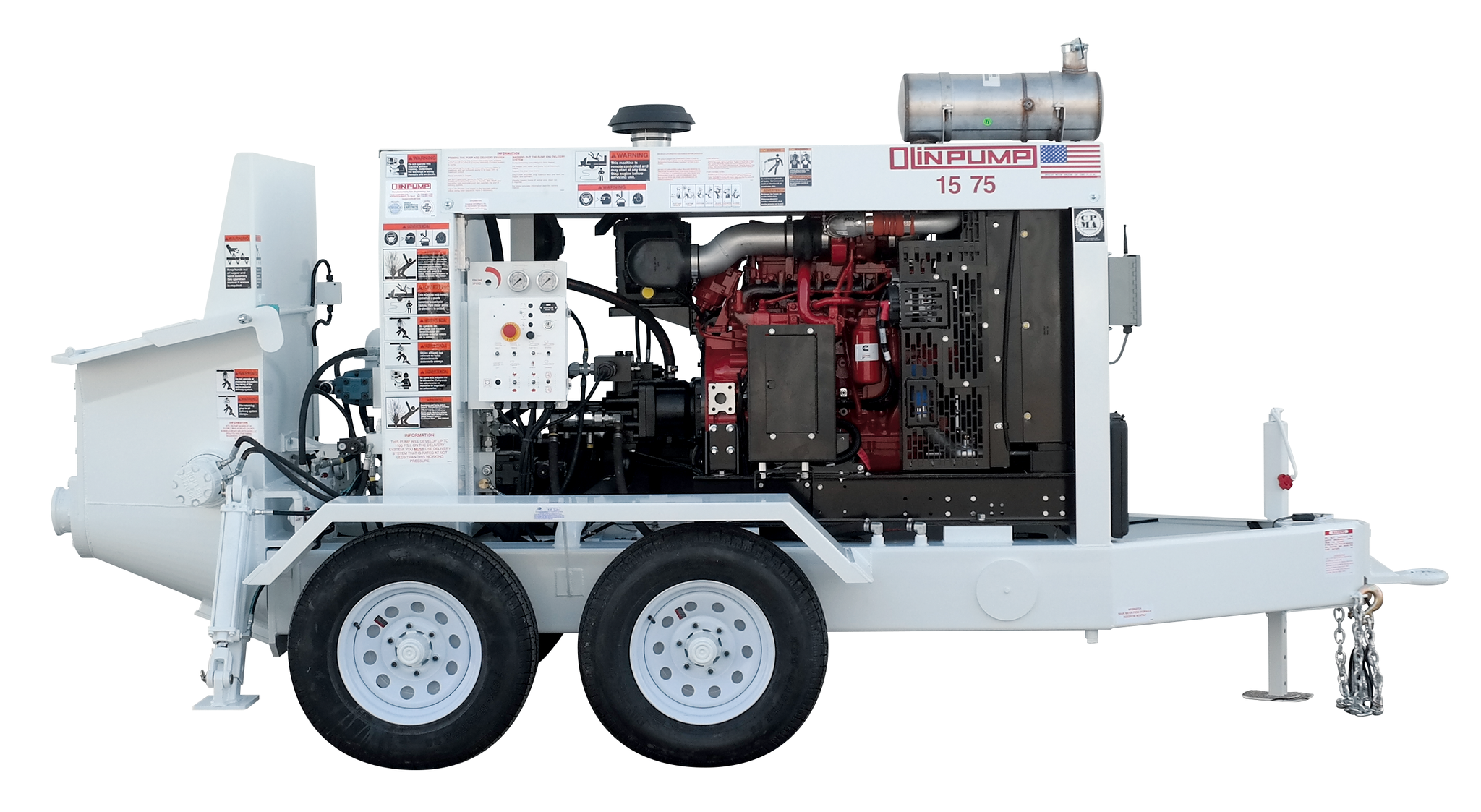

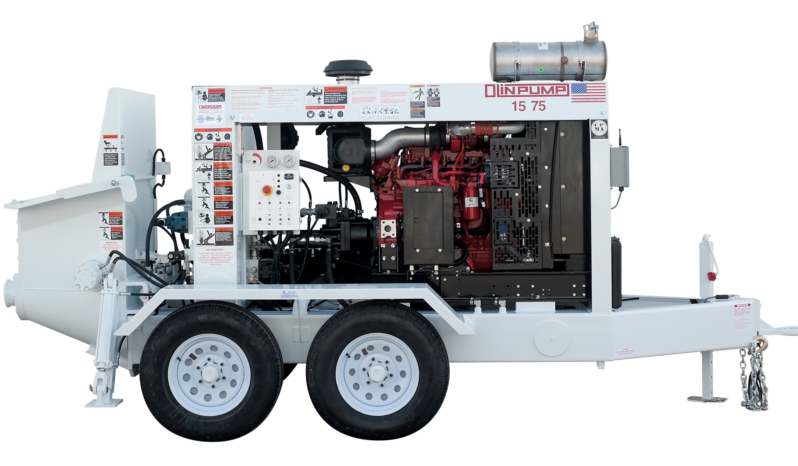

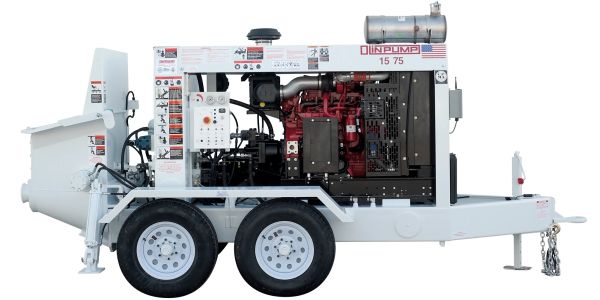

The midsize range of Olin’s S-Tube pumps not only provides a choice of size and price, but also features the same great hopper inlet and cleanout characteristics, ease in wear part access, simple electric/hydraulic circuitry, and the smoothest flow at the working end of the delivery system.

Weight Dry:………………………………….. 5850 lbs

Length:………………………………………… 175″

Width:………………………………………….. 70″

Hopper Height:…………………………….. 46″

Brakes:…………………………………………. Electric

Tires:……………………………………………. 225/75 R15

Axle:…………………………………………….. Tandem Torsion 5600 lbs

Hopper Capacity:………………………….. 8 cu ft

Fuel Tank Capacity:………………………. 27 gal

Engine:………………………………………… JCB EcoMAX 4.4 124hp

Hydraulic Tank Capacity:………………. 85 gal

Main Hydraulic Pump:………………….. KPM K3VL140

Material Valve/Swing Tube:…………… S-Tube

Discharge Diameter Outlet:…………… 5″

Concrete Cylinder Stroke:…………….. 36″

Concrete Cylinder Diameter:………… 7″

Maximum Aggregate:…………………… 1 1/2″

Piston Head Pressure:…………………. 1100 psi

Theoretical Output (C.Y.P.H.):……….. 80
