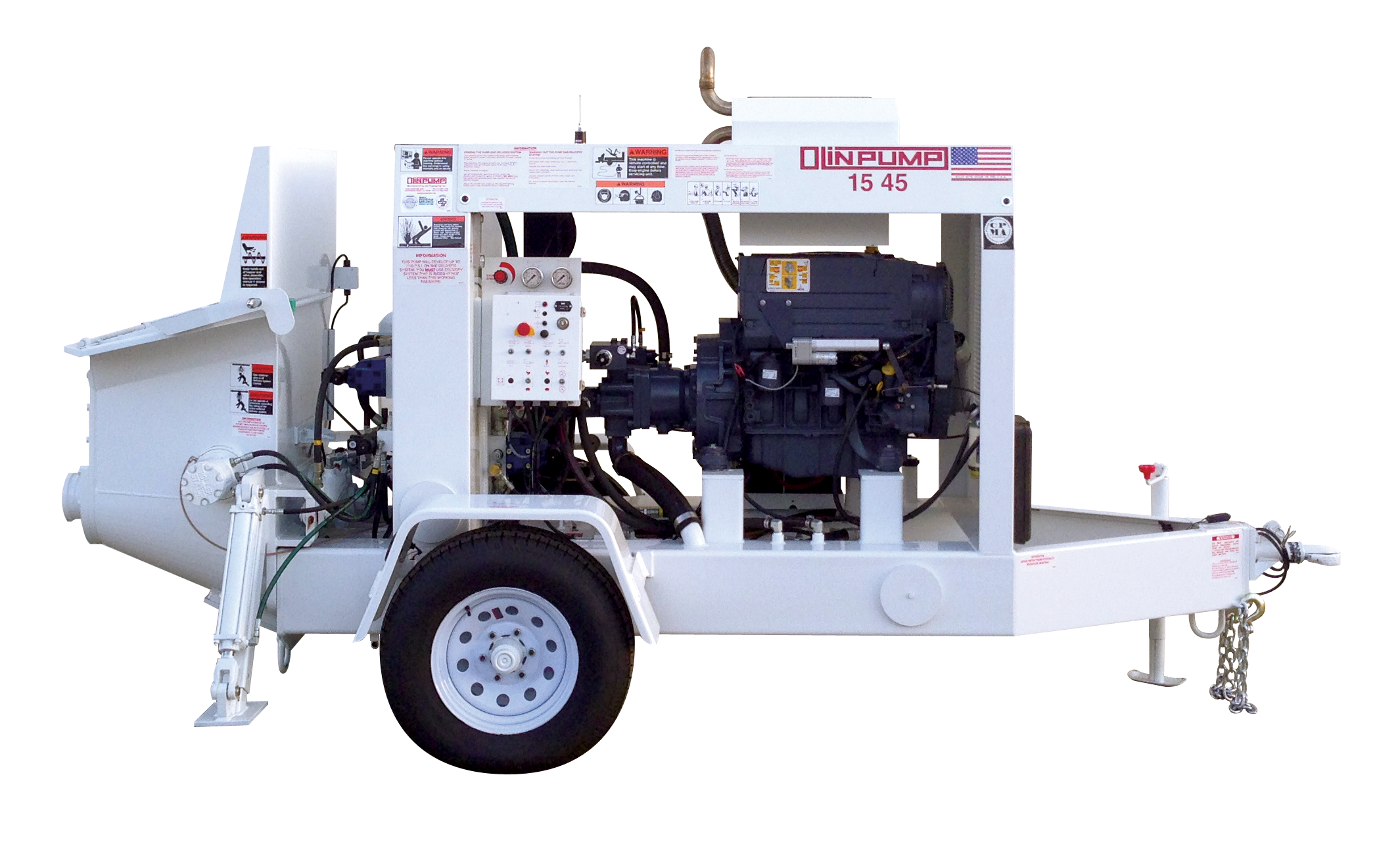

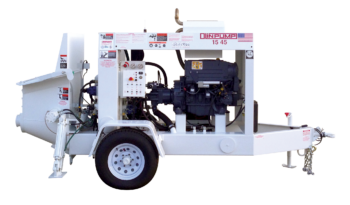

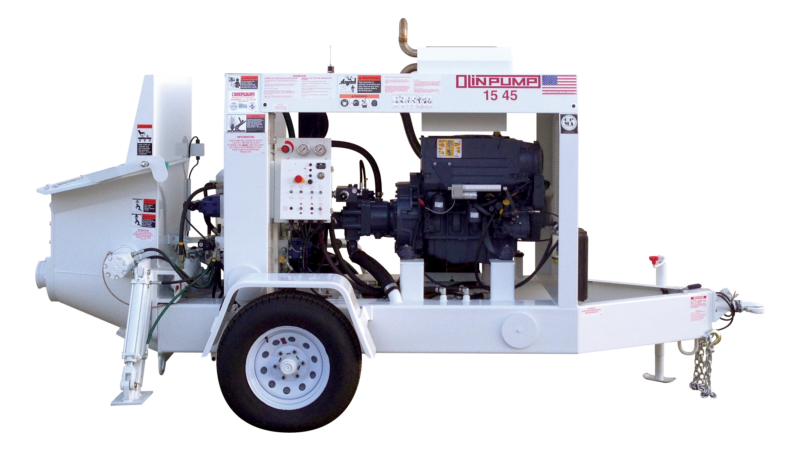

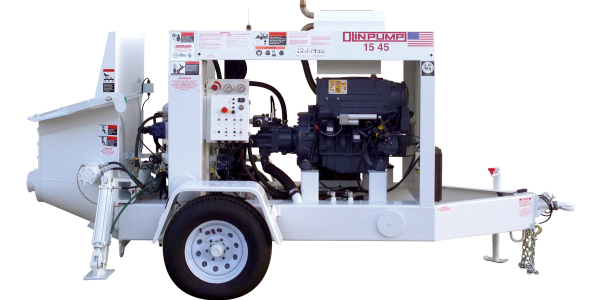

The small end of Olin’s S-Tube Stationary Pumps offer all the same great features of the larger pumps; simplicity of design, high efficiency, maintenance friendliness, great value, and after sale support that is unequalled in the industry.

Weight Dry:………………………………….. 4850 lbs

Length:………………………………………… 162″

Width:………………………………………….. 70″

Hopper Height:…………………………….. 46″

Brakes:…………………………………………. Electric

Tires:……………………………………………. 225/75 R15

Axle:…………………………………………….. Torsion 5600 lbs

Hopper Capacity:………………………….. 8 cu ft

Fuel Tank Capacity:………………………. 23 gal

Engine:………………………………………… KD12504 74hp

Hydraulic Tank Capacity:………………. 81 gal

Main Hydraulic Pump:………………….. KPM K3VL112

Material Valve/Swing Tube:…………… S-Tube

Discharge Diameter Outlet:…………… 5″

Concrete Cylinder Stroke:…………….. 24″

Concrete Cylinder Diameter:………… 6″

Maximum Aggregate:…………………… 3/4″

Piston Head Pressure:…………………. 1230 psi

Theoretical Output (C.Y.P.H.):……….. 50
