OLIN PUMP 15 130

$0

OLIN PUMP 15 130

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
N/A
Concrete Output Max (theo.)
40
Seller Note

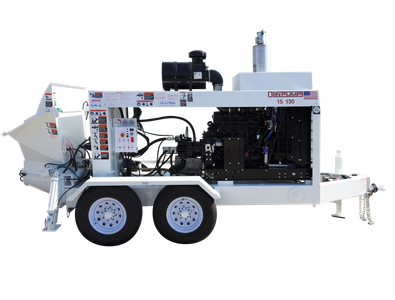

OLINPUMP 15 130 S-TUBE PUMP

OLINPUMP 15 130

The 15 130 is the higher output 8″ cylinder version of the 15 95. It shares all the same wear parts as the 55, 75, and 95 S-Tube models except of course for the larger concrete cylinders and pistons which come from the 140 thru 220CA models.

Weight Dry:………………………………….. 7700 lbs

Length:………………………………………… 205″

Width:………………………………………….. 74″

Hopper Height:…………………………….. 52″

Brakes:…………………………………………. Electric

Tires:……………………………………………. 225/75 R15

Axle:…………………………………………….. Tandem Torsion 5600 lbs

Hopper Capacity:………………………….. 11 cu ft

Fuel Tank Capacity:………………………. 39 gal

Engine:………………………………………… JCB EcoMAX 4.8 173hp

Hydraulic Tank Capacity:………………. 95 gal

Main Hydraulic Pump:………………….. KPM K3VL200

Material Valve/Swing Tube:…………… S-Tube

Discharge Diameter Outlet:…………… 5″

Concrete Cylinder Stroke:…………….. 54″

Concrete Cylinder Diameter:………… 7″

Maximum Aggregate:…………………… 1 1/2″

Piston Head Pressure:…………………. 900 psi

Theoretical Output (C.Y.P.H.):……….. 130
