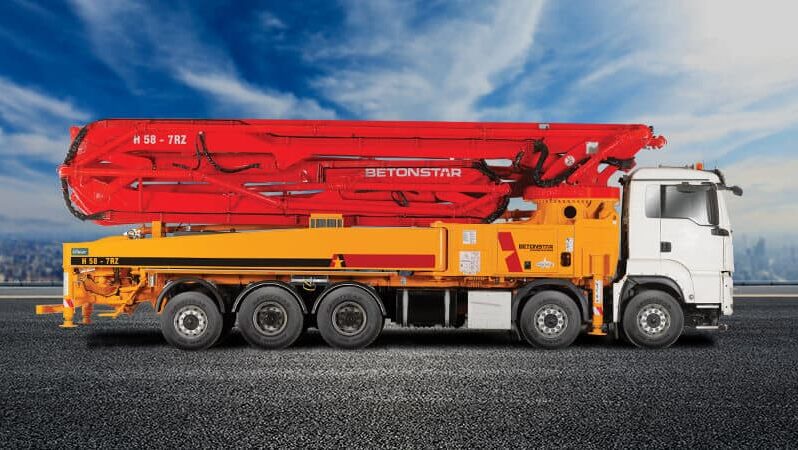

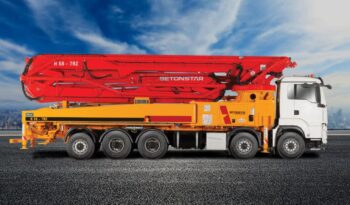

H 58 5RZ or 7RZ Betonstar
$0
H 58 5RZ or 7RZ Betonstar
Concrete Pump Details
Boom Specifications
Manufacturer
Betonstar
Condition
New
Sections
7 Sections
Vertical Reach
57,1 m
Reach From Front
N/A
Unfolding Height
11,3 m
Outrigger
All Hydraulic
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
230 mm(9″)
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
26
Main Oil Pump
A4 VG 125 (REXROTH)
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
N/A
Seller Note
H 58 5RZ or 7RZ
| Boom Type | 7RZ |
| Max. Vertical Reach | 57.1 m |
| Max. Horizantal Reach | 52.1 m |
| Boom Unfolding Height (min) | 11.3 m |
| 1st Boom Lenght | 10 m |
| SmartStar Control System | Included |
| Electric Box | Water Proof and Computer Control |
| Proportional Remote Controller | Included (HETRONIC) |
| End Hose | 3 m |
| Water Pump | Included, 4 m3/h |
| Water Tank Capacity | 500 liter, 15 m hose with fittings |
| Lubrication System | Hydraulic (LINCOLN and ALLFETT) |
| Max. Theoritical Concrete Output | 140 m3/h | 160 m3 / h |
| Max. Theoritical Concrete Pressure | 81 bar | 81 bar |
| Stroke | 26 stroke/min | 26 stroke / min |
| Concrete Cylinder Dimensions | 230 mm x 1400 mm | 250 mm x 2100 mm |
| Main Hydraulic Pump | 2x A4 VG 125 (REXROTH) | 2x A4 VG 125 (REXROTH) |
| Hopper Capacity | 650 liter |
| Switching System | Elect. Magn. Sensor |
| Concrete Valve | S Valve System |
| Boom Pump | V60N (HAWE) |
| Agitator Pump | Included (ASC) |
