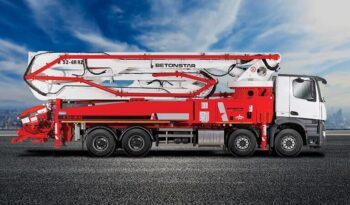

H 52 6RZ Betonstar
$0
H 52 6RZ Betonstar
Concrete Pump Details
Boom Specifications
Manufacturer
Betonstar
Condition
New
Sections
6 Sections
Vertical Reach
51.2 m
Reach From Front
N/A
Unfolding Height
10 m
Outrigger
All Hydraulic
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
26
Main Oil Pump
A4 VG 125 (REXROTH)
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
650L (171 G)
Seller Note
H 52 6RZ
| Boom Type | 6RZ |
| Max. Vertical Reach | 51.2 m |
| Max. Horizantal Reach | 47.2 m |
| Boom Unfolding Height (min) | 10 m |
| 1st Boom Lenght | 9.5 m |
| 2nd Boom Lenght | 7.1 m |
| 3rd Boom Lenght | 7.1 m |
| 4th Boom Lenght | 7.2 m |
| 5th Boom Lenght | 7.2 m |
| 6th Boom Lenght | 9.2 m |
| Boom Swing Speed | 204 sec |
| Boom Swinging Angle | 365° |
| Concrete Pump Diameter | 5” |
| SmartStar Control System | Included |
| Electric Box | Water Proof and Computer Control |
| Proportional Remote Controller | Included (HETRONIC) |
| End Hose | 3 m |
| Water Pump | Included, 4 m3/h |
| Water Tank Capacity | 500 liter, 15 m hose with fittings |
| Lubrication System | Hydraulic (LINCOLN and ALLFETT) |
| PUMP TYPE | BST 52.14-6RZ | BST 52.16-6RZ |
| Max. Theoritical Concrete Output | 140 m3/h | 160 m3 / h |
| Max. Theoritical Concrete Pressure | 81 bar | 81 bar |
| Stroke | 26 stroke / min | 26 stroke / min |
| Concrete Cylinder Dimensions | 230 mm x 2100 mm | 250 mm x 2100 mm |
| Main Hydraulic Pump | 2x A4 VG 125 (REXROTH) | 2x A4 VG 125 (REXROTH) |
| Hopper Capacity | 650 liter |
| Switching System | Elect. Magn. Sensor |
| Concrete Valve | S-Valve System |
| Boom Pump | V60N (HAWE) |
| Agitator Pump | Included (ASC) |
| Front Legs | Diagonal Folding |
| Rear Legs | Side Hydraulic Swing |
| Distance Between Front Legs | 9.9 m |
| Distance Between Rear Legs | 8.8 m |
| Driven By | PTO or Gear Box |
| Vibrator | Optional |
| Air Compressor | Optional |
| Stability Control System | Optional |
| End Hose Squeezer | Optional |
| High Pressure Washing Pump | Optional |
