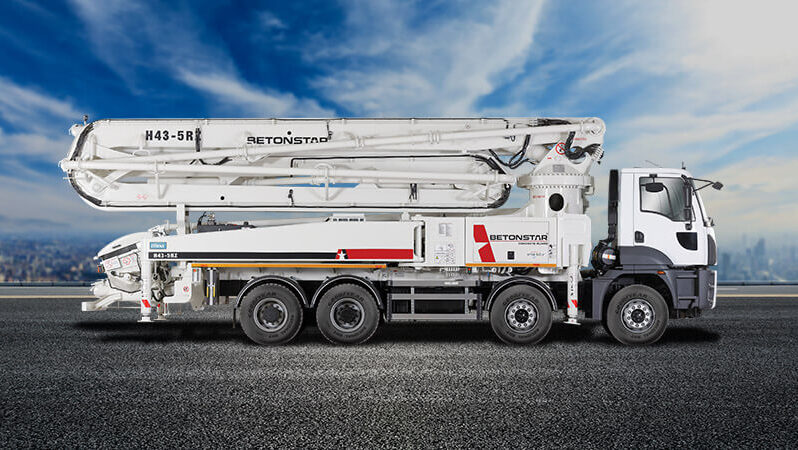

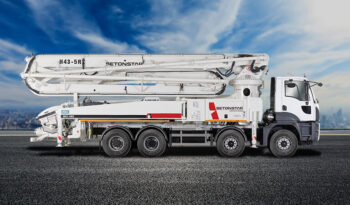

H 43 5RZ BetonStar

$0

H 43 5RZ BetonStar

Concrete Pump Details

Boom Specifications
Manufacturer
Betonstar
Condition
New
Sections
5 sections
Vertical Reach
42.3 m
Reach From Front
N/A
Unfolding Height
9 m
Outrigger
All Hydraulic
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
26
Main Oil Pump
A4 VG 125 (REXROTH)
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
650L (171 G)
Seller Note

Boom Type5RZ
Max. Vertical Reach42.3 m
Max. Horizantal Reach38.6 m
Boom Unfolding Height (min)9 m
1st Boom Lenght8.3 m
2nd Boom Lenght7.1 m
3rd Boom Lenght7 m
4th Boom Lenght7.8 m
5th Boom Lenght7.8 m
Boom Swing Speed180 sec
Boom Swinging Angle365°
Concrete Pump Diameter5”

SmartStar Control SystemIncluded
Electric BoxWater Proof and Computer Control
Proportional Remote ControllerIncluded (HETRONIC)
End Hose3 m
Water PumpIncluded, 4 m3/h
Water Tank Capacity500 liter, 15 m hose with fittings
Lubrication SystemHydraulic (LINCOLN and ALLFETT)

Max. Theoritical Concrete Output140 m3 / h160 m3 / h
Max. Theoritical Concrete Pressure81 bar81 bar
Stroke26 stroke / min26 stroke / min
Concrete Cylinder Dimensions230 mm x 2100 mm250 mm x 2100 mm
Main Hydraulic Pump2x A4 VG 125 (REXROTH)2x A4 VG 125 (REXROTH)
PUMP TYPEBST 43.14-5RZBST 43.16-5RZ

Hopper Capacity650 liter
Switching SystemElec. Magn. Sensor
Concrete ValveS-Valve System
Boom PumpA7V028 or A17F0045 (REXROTH)
Agitator PumpIncluded (ASC)

Front LegsDiagonal Folding
Rear LegsSide Hydraulic Swing
Distance Between Front Legs8.5 m
Distance Between Rear Legs8.8 m

Driven ByPTO or Gear Box
VibratorOptional
Air CompressorOptional
Stability Control SystemOptional
End Hose SqueezerOptional
High Pressure Washing PumpOptional
