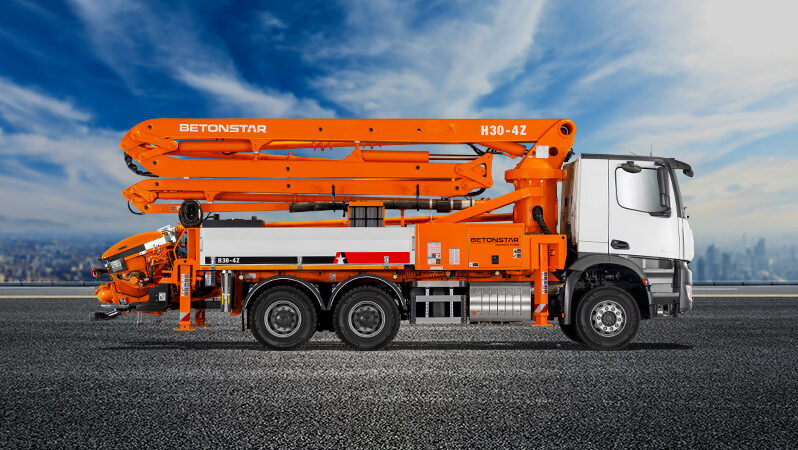

H 30 4Z BetonStar

$0

H 30 4Z BetonStar

Concrete Pump Details

Boom Specifications
Manufacturer
Betonstar
Condition
New
Sections
4 Sections
Vertical Reach
29.5 m
Reach From Front
N/A
Unfolding Height
6.5 m
Outrigger
All Hydraulic
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
230mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
26
Main Oil Pump
A4 VG 125 (REXROTH)
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
N/A
Seller Note

Boom Type4Z
Max. Vertical Reach29.5 m
Max. Horizantal Reach25 m
Boom Unfolding Height (min)6.5 m
1st Boom Lenght7.4 m
2nd Boom Lenght6 m
3rd Boom Lenght6 m
4th Boom Lenght6.1 m
Boom Swing Speed104 sec
Boom Swinging Angle365°
Concrete Pump Diameter5”

SmartStar Control SystemIncluded
Electric BoxWater Proof and Computer Control
Proportional Remote ControllerIncluded (HETRONIC)
End Hose3 m
Water PumpIncluded, 4 m3/h
Water Tank Capacity500 liter, 15 m hose with fittings
Lubrication SystemHydraulic (LINCOLN and ALLFETT)

Max. Theoritical Concrete Output90 m3 / h140 m3 / h
Max. Theoritical Concrete Pressure81 bar69 bar
Stroke26 stroke / min26 stroke / min
Concrete Cylinder Dimensions230 mm x 1400 mm230 mm x 2100 mm
Main Hydraulic PumpA4 VG 125 (REXROTH)A4 VG 180 (REXROTH)
PUMP TYPEBST 30.90-4ZBST 30.14-4Z

Hopper Capacity650 liter
Switching SystemElec. Magn. Sensor
Concrete ValveS-Valve System
Boom PumpA7V016 or A17F0023 (REXROTH)
Agitator PumpIncluded (ASC)

Front LegsDiagonal Folding
Rear LegsFixed
Distance Between Front Legs5.2 m
Distance Between Rear Legs3.7 m

Driven ByPTO or Gear Box
VibratorOptional
Air CompressorOptional
Stability Control SystemOptional
End Hose SqueezerOptional
High Pressure Washing PumpOptional
