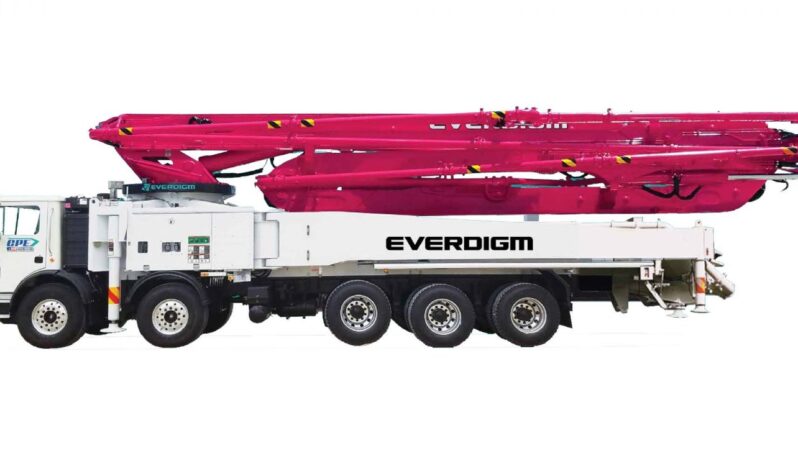

59CX by CPE America

$0

59CX by CPE America

Concrete Pump Details

Boom Specifications
Manufacturer
Everdigm
Condition
New
Sections
5 sections
Vertical Reach
190’11" (58.2m)
Reach From Front
53.1m (174'3")
Unfolding Height
42’7" (12.2m)
Outrigger
All Hydraulic
Front Spread
11. 5m (36'2")
Rear Spread
11.7 (38'4")
Pump Specifications
Concrete Cylinder Diameter
230mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
30
Main Oil Pump
A4VG125x2
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
General Specifications
Water Tank
600L
Seller Note

Dimensions will vary with different truck makes, models and specifications. Varies with options selected. Based on Model MACK MRU613 with 2116 pump cell. Weights are approximate and include pump, boom, truck, driver and full fuel.

BOOM

Folding type:  5-section RZ-folding

Max. vertical reach: 190’11″ (58.2m)

Max. horizontal reach: 174’3″ (53.1m)

Max. depth reach: 139’5” (42.5m) (incl. End hose 3m)

Unfolding height: 42’7″ (12.2m)

Slewing angle:  360 deg.

End hose length:  10’ (3m)

Delivery pipe dia: 5” (125mm)

PUMP

Pump cell:  2116

Control system:  Closed Free Flow Hydraulic

Main pump:  A4VG125x2

Concrete cylinder (mm):  9”x83” (230×2,100mm)

Strokes No: (per min.) 30

Concrete output*:  210yd3/h (160m3/h)

Concrete pressure*:  1,233 psi (85bar)

Transfer tube type:  S-Tube, S2318 (Dia. 230-180mm)

Volume of hopper: 158 gal (600L)



*Rod side. Output & pressure are theoretical data.

WORKING RANGE

angel

OUTRIGGER SPREAD

outriggerspread

Front outrigger type:
X(Diagonal) Extension

Rear outrigger type:
Swing-out

UPPER BODY DIMENSION

upperbodydimension
