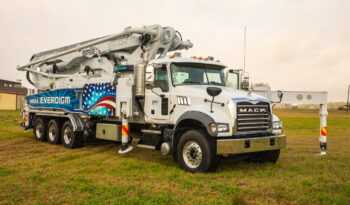

48CX by CPE America

$0

48CX by CPE America

Concrete Pump Details

Boom Specifications
Manufacturer
Everdigm
Condition
New
Sections
5 sections
Vertical Reach
154’6”(47.1m)
Reach From Front
42.1 (138'1")
Unfolding Height
39’4” (12m)
Outrigger
All Hydraulic
Front Spread
8.8m (28'10")
Rear Spread
9.2m (30'2")
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2100 mm (83")
Number of Strokes/Min
30
Main Oil Pump
A4VG125x2
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
General Specifications
Water Tank
600L
Seller Note
ECP48CX-1

Dimensions will vary with different truck makes, models and specifications. Varies with options selected. Based on Model MACK MRU613 with 2116 pump cell. Weights are approximate and include pump, boom, truck, driver and full fuel.

BOOM

Folding type:  5-section RZ-folding

Max. vertical reach:  154’6”(47.1m)

Max. horizontal reach:  138’1” (28.2m)

Max. depth reach:  108’7″ (33.1m) (incl. End hose 3m)

Unfolding height:  39’4” (12m)

Slewing angle:  360 deg.

End hose length:  10’ (3m)

Delivery pipe dia: 5” (125mm)

PUMP

Pump cell:  2116

Control system:  Closed Free Flow Hydraulic

Main pump:  A4VG125x2

Concrete cylinder (mm):  9”x83” (230×2,100mm)

Strokes No: (per min.) 30

Concrete output*:  210yd3/h (160m3/h)

Concrete pressure*:  1,233 psi (85bar)

Transfer tube type:  S-Tube, S2318 (Dia. 230-180mm)

Volume of hopper: 158 gal(600L)



*Rod side. Output & pressure are theoretical data.

WORKING RANGE

ECP48CX-2

OUTRIGGER SPREAD

ECP48CX-3

Front outrigger type:
X(Diagonal) Extension

Rear outrigger type:
Swing-out

UPPER BODY DIMENSION

UPERBODYDIMENSION
