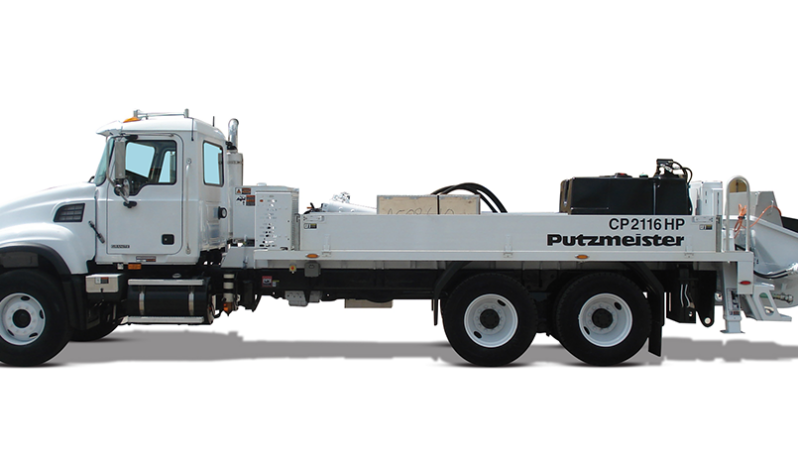

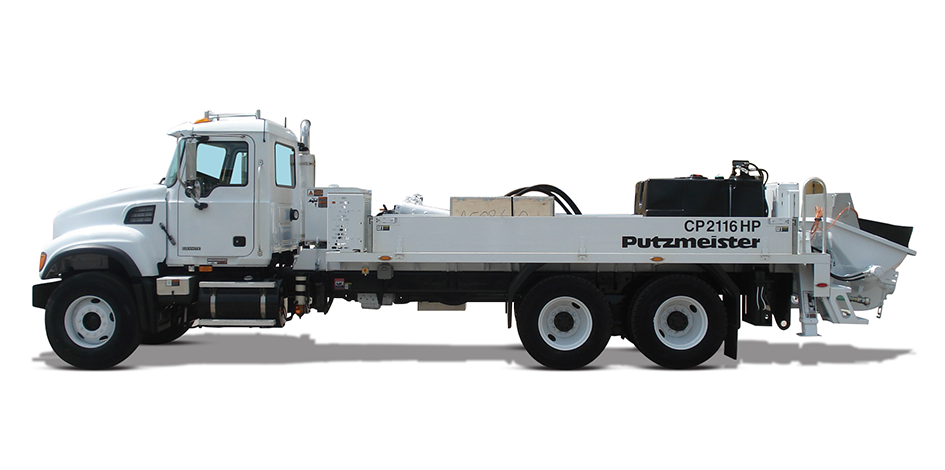

CP 2116 H by Putzmeister

> Listings > New > CP 2116 H by Putzmeister
$0

CP 2116 H by Putzmeister

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
31
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
2.5 IN
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note

TECHNICAL SPECIFICATIONS

TRUCK-MOUNTED LINE PUMPS SPECIFICATIONS

PERFORMANCE

Maximum output – rod side

209 yd³/hr (160m³/hr)

Maximum output – piston side

141 yd³/hr (108m³/hr)

Maximum pump pressure – rod side

1,233 psi (85 bar)

Maximum pump pressure – piston side*

1,855 psi (130 bar)

TECHNICAL INFORMATION

Material cylinder diameter

9″ (230mm)

Stroke length

83″ (2,100mm)

Maximum strokes per minute – rod side

31

Maximum strokes per minute – piston side

21

Variable volume control

0 to Full

Vibrator

Standard

Hard chromed material cylinders

Standard

Hydraulic system

Free Flow

Hydraulic system pressure

5,075 psi (350 bar)

Differential cylinder diameter

5.5″ (140mm)

Rod diameter

3.1″ (80mm)

Maximum size aggregate

2.5″ (63mm)

Water tank capacity

185 gal (700L)

VALVE & HOPPER

S-Valve – heavy duty

2318

Reduction

8″ to 6″ (200 to 150mm)

Hopper capacity

19.4 ft³ (550L)

Hopper height

49″ (1,250mm)

* Standard delivery line system rated at max line pressure of 1,233 psi (85 bar). All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
