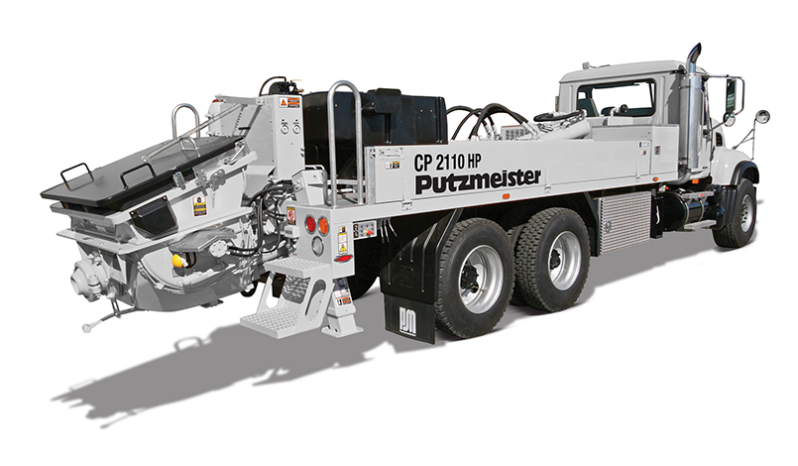

CP 2110 HP by Putzmeister

$0

CP 2110 HP by Putzmeister

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
26
Main Oil Pump
N/A
Lube System (Hopper)
N/A
Max. Aggregate Size
2.5 IN
General Specifications
Hopper Vibrator
N/A
Tool Box
N/A
Water Tank
N/A
Seller Note

TECHNICAL SPECIFICATIONS

TRUCK-MOUNTED LINE PUMPS SPECIFICATIONS

PERFORMANCE

Maximum output – rod side

139 yd³/hr (106m³/hr)

Maximum output – piston side

90 y³d/hr (69m³/hr)^

Maximum pump pressure – rod side

2,176 psi (150 bar)

Maximum pump pressure – piston side*

3,191 psi (220 bar)

TECHNICAL SPECIFICATION

Material cylinder diameter

7.9″ (200mm)

Stroke length

83″ (2,100mm)

Maximum strokes per minute – rod side

26

Maximum strokes per minute – piston side

18

Variable volume control

0 to full

Vibrator

Standard

Hard chromed material cylinders

Standard

Hydraulic system

Free Flow

Hydraulic system pressure

5,075 psi (350 bar)

Differential cylinder diameter

6.3″ (160mm)

Rod diameter

3.1″ (90mm)

Maximum size aggregate

2.5″ (63mm)

Water tank capacity

233 gal (880L)

VALVE & HOPPER

Hopper

RS 905HPF

S-Valve – heavy duty

1812

Reduction

8″ to 6″ (200 to 150mm) with 6″ (150mm) weld ring

Hopper capacity

19.4 ft³ (550L)

Hopper height

4′ 5″ (1.35m)

* Standard delivery line system rated at max line pressure of 1,233 psi (85 bar). All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
