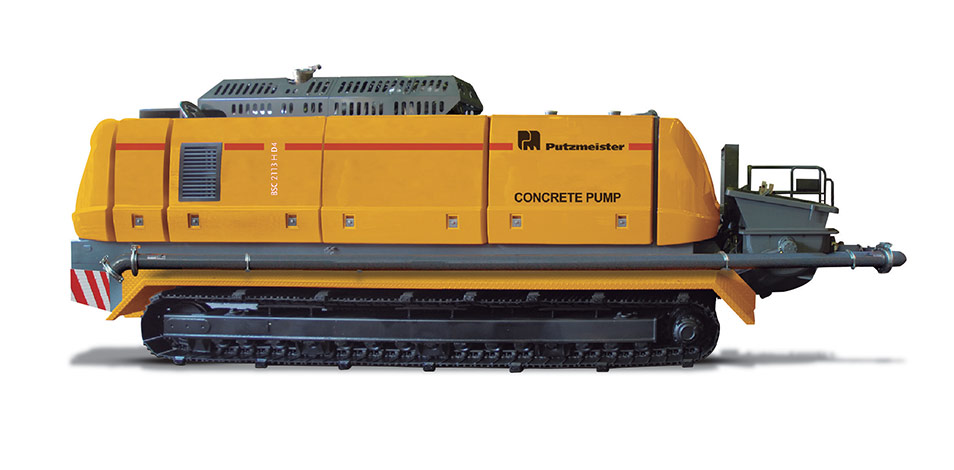

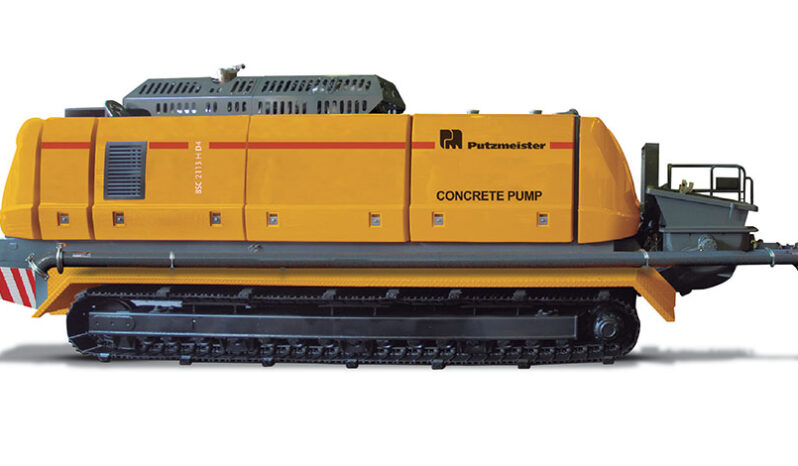

BSC 2113 H D4 by Putzmeister
BSC 2113 H D4 by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
Dimensions (L x W x H)
25’ 5” x 7’ 6” x 8’ 11” (7,742 x 2,293 x 2,708mm)
Determined features
Weight
35,275 lbs (16,000kg)
Concrete Pump
Delivery volume of up to
170 – 116 yd³/h (130 – 89m³/h)
Concrete pressure of up to
1625 – 1885 psi (112-130 bar)
Strokes/Minute
26/18 min
Delivery cylinder stroke
6’ 11” (2,100mm)
Delivery cylinder diameter
9” (230mm)
Pressure connection
6″ (150mm)
Chassis
Engine
Diesel Deutz, 6 cylinder
Engine Power
330kW (450 HP)
Engine emission
Stage IV / Tier 4f
Steel crawlers
Steel
Maximum speed
1.24 mph (2km/h)
Diesel deposit
61 gal (230L)
Lights
2 on the hopper, 1 in front
Remote control
Cleaning equipment
Water tank
291 gal (1,100L)
Cleaning pump
5.6 ft³/min (160L/min), 360 psi (25 bar )
Air compressor
30 ft³/min (860L/min)
Pressured air tank
4.2 ft³/h (120L)
All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on reques
