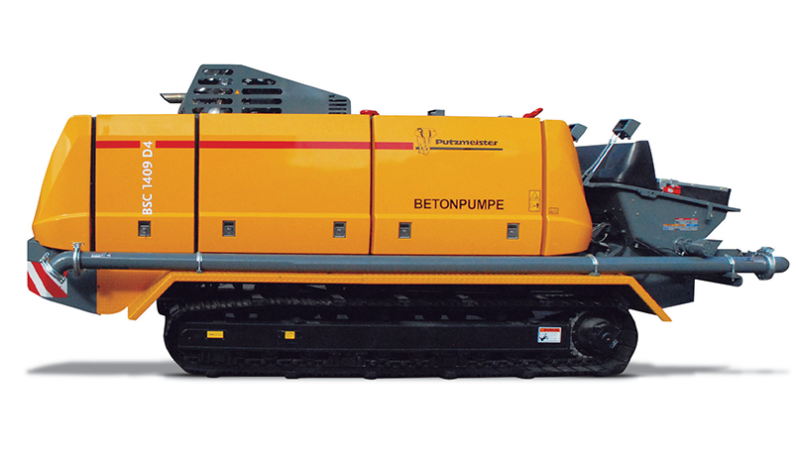

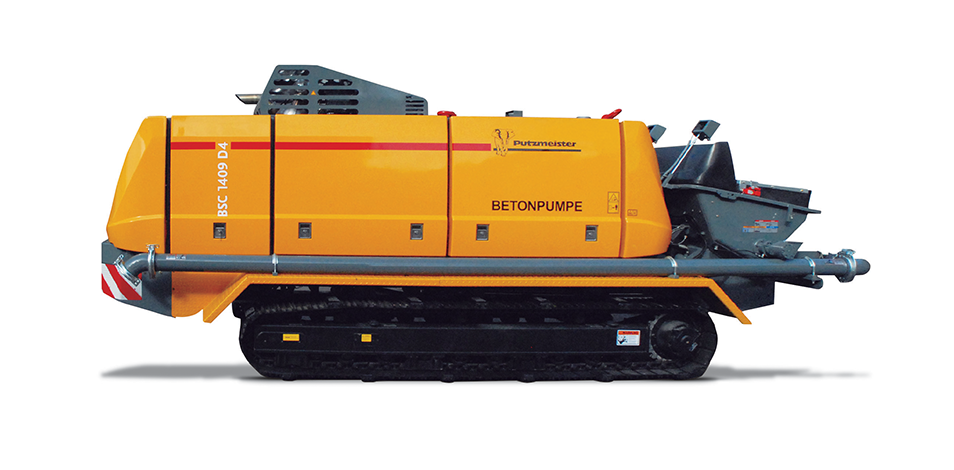

BSC 1409 D4 by Putzmeister
$0
BSC 1409 D4 by Putzmeister
Concrete Pump Details
Pump Specifications
Number of Strokes/Min
37
Concrete Output Max (theo.)
126 yd³/h
Seller Note
TECHNICAL SPECIFICATIONS
Delivery cylinder stroke
4’ 7” (1,400mm)
Output
126 yd³/h (97m³/h)
Delivery pressure
1029 psi (71 bar)
Strokes/Minute
37
Engine power
204 hp (150kW) Deutz 6 cylinder
Weight
19,840 lbs (9,000kg)
Dimensions
21’ 4” x 7’ 2” x 8’ (6,506 x 2,197 x 2,447mm)
Pressure connection
5,5″ (125mm)
Capacity
600 l
Crawler
Steel
Max. speed
1.2 mph (2km/h)
Water tank
211 gal (800L)
Water pump
13 gal/min (50L/min), 290 psi (20 bar)
Air compressor
29 ft³/min (820L/min)
All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
