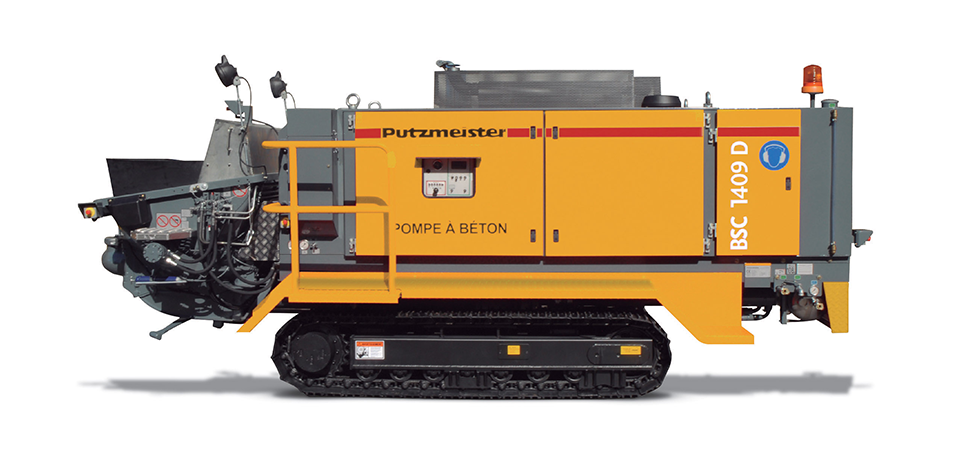

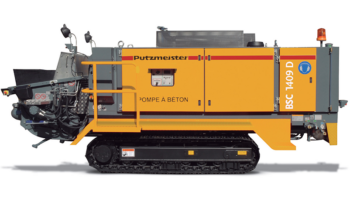

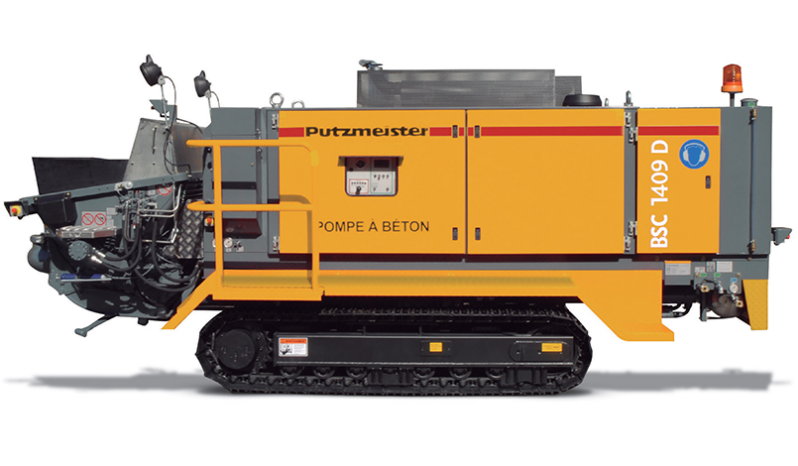

BSC 1409 D by Putzmeister
BSC 1409 D by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
Concrete Pump:
Delivery cylinder stroke
4’ 7” (1,400mm)
Delivery Cylinder Diameter
8” (200mm)
Output
110 yd³/h (85m³/h)
Delivery pressure
1029 psi (71 bar)
Strokes/Minute
32
Engine power
173 hp (129kW) Deutz 4 cylinder
Engine Emission Stage
III A
Dimensions
17’ 5” x 6’ 3” x 7’ 4” (5,310 x 1,900 x 2,245mm)
Weight
13,227 lbs (6,000kg)
Pressure connection
5.5″ (125mm)
Hopper:
Capacity
21 ft³ (600L)
Maximum noise levels
116 dB
Lights
2
Chassis:
Crawler
Steel
Max. speed
1.2 mph (2km/h)
Diesel tank
36 gal (135L)
Cleaning equipment:
Water tank
132 gal (500L)
Water pump
13 gal/min (50L/min), 290 psi (20 bar)
Air compressor
30 ft³/min (860L/min)
Pressured air tank
1.4 ft³ (40L)
All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
