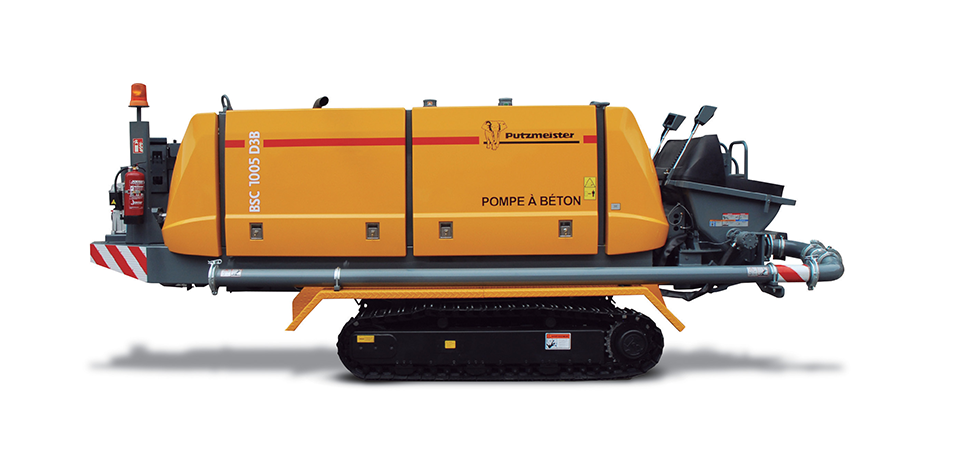

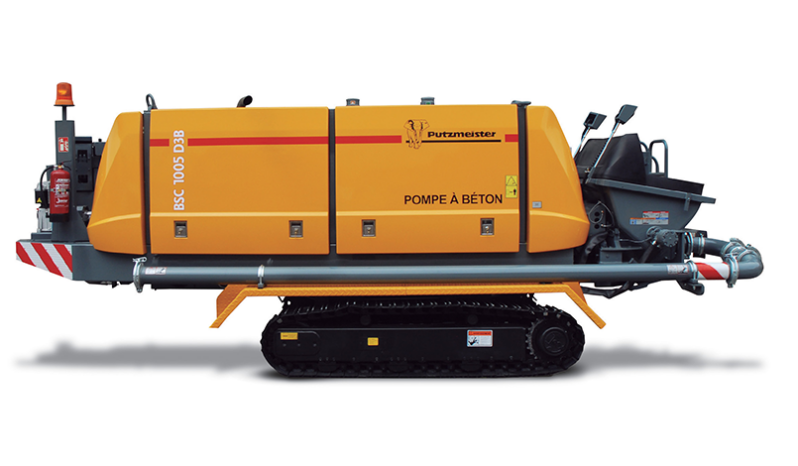

BSC 1005 D3B by Putzmeister
$0
BSC 1005 D3B by Putzmeister
Concrete Pump Details
Pump Specifications
Number of Strokes/Min
34
Concrete Output Max (theo.)
75 yd³/h
Seller Note
TECHNICAL SPECIFICATIONS
Delivery cylinder stroke
3’ 3” (1,000mm)
Output
75 yd³/h (58m³/h)
Delivery pressure
1030 psi (71 bar)
Strokes / Minute
34
Engine power
73 hp (55 kW) Deutz 4 cylinder
Engine Emission
Stage III B / Tier 4f
Weight
11,020 lbs (5,000kg)
Dimensions
18’ 1” x 6’ 3” x 7’ 12” (5,523 x 1,900 x 2,433mm)
Pressure connection
5.5″ (125 mm)
Chassis
Crawler
Steel
Lights
2 on the hopper, 1 in front
Water tank
200 gal (762L)
Water pump
13.2 gal/min (50L/min), 290 psi (20 bar)
Air compressor
30 ft³/min (860L/min)
Pressured air tank
1.4 ft³ (40L)
All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
