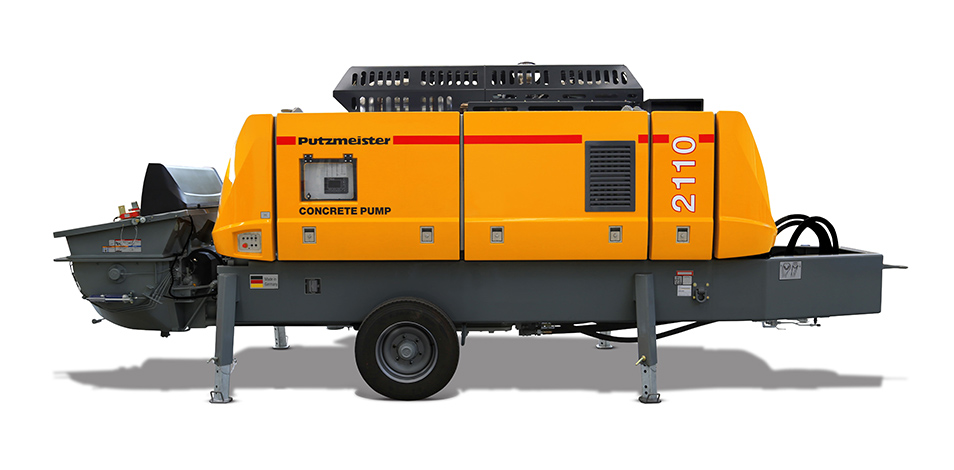

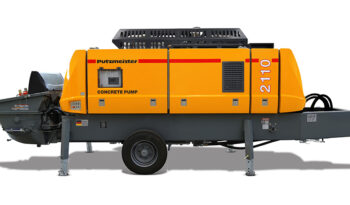

BSA 2110 HP D4 by Putzmeister
BSA 2110 HP D4 by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
BSA TRAILER PUMPS SPECIFICATIONS
PERFORMANCE
Maximum theoretical output* – rod
133 yd³/hr (102m³/hr)
Maximum theoretical output*^ – piston
92 yd³/hr (70m³/hr)
Maximum theoretical pressure* – rod
2,176 psi (150 bar)
Maximum theoretical pressure*^ – piston
3,190 psi (220 bar)
TECHNICAL INFORMATION
Material cylinders
8″ x 83″ (200 x 2,100mm)
Variable volume
0 to full
Chromed cylinders
Standard
Hydraulic system
FFH-EL
Hydraulic system pressure
5,075 psi (350 bar)
Hydraulic cylinders
6.3″ x 3.5″ (160 x 90mm)
Outlet diameter
ZX150
Maximum size aggregate
2.5″ (63mm)
VALVE & HOPPER
S-Valve
S-2015D
Hopper model
RS 905HF
Hopper capacity
21.2 ft³ (600L)
Hopper height
50″ (1,270mm)
Maximum strokes per minute – rod
26
Maximum strokes per minute – piston
18
DIMENSIONS
Trailer type
Tandem axles
Length
304″ (7,725mm)
Width
101″ (2,560mm)
Height
94″ (2,390mm)
Approximate weight
22,000 lbs (9,980kg)
ENGINE SPECIFICATIONS
Diesel Engine / Motor
Deutz
Power
443 hp (330kW)
All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
