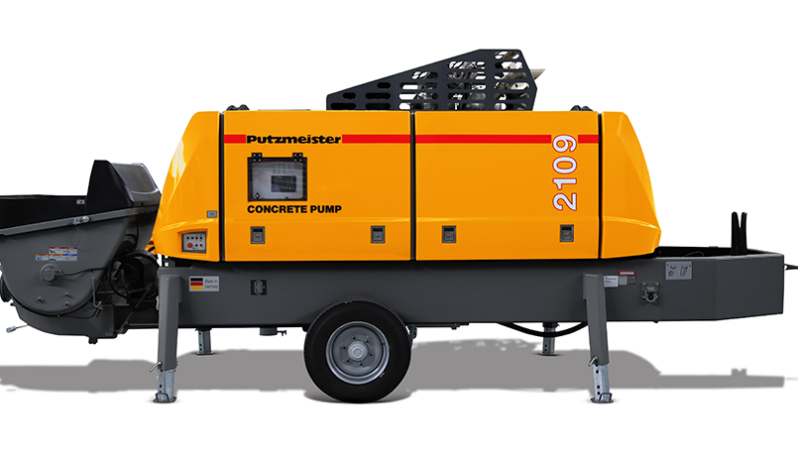

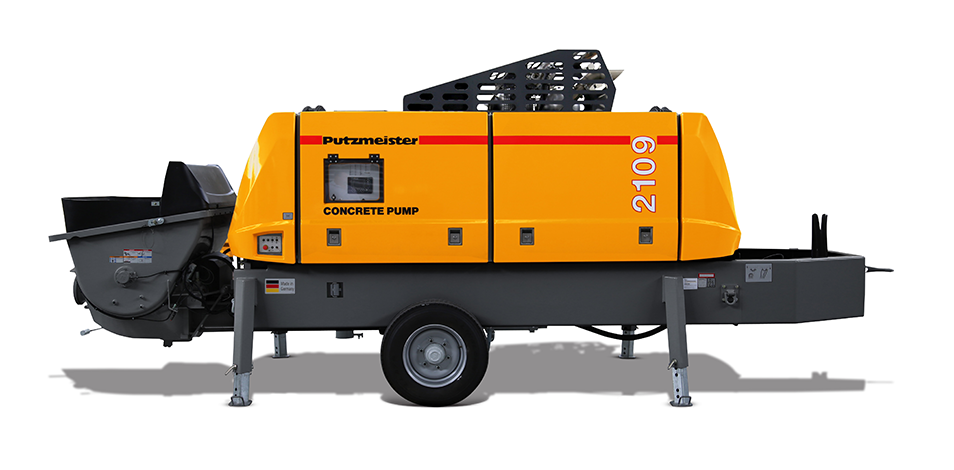

BSA 2109 H D4 by Putzmeister
$0
BSA 2109 H D4 by Putzmeister
Concrete Pump Details
Pump Specifications
Number of Strokes/Min
24/15
Concrete Output Max (theo.)
84/57*m³/h
Seller Note
TECHNICAL SPECIFICATIONS
Delivery cylinder diameter
200 Ø mm
Delivery cylinder stroke
2,100 mm
Output
84/57*m³/h
Delivery pressure
91/152*bar
Strokes/Minute
24/15*
Engine power
225 kW
Weight
6,800 kg
Pressure connection
8″
* Values for hydraulic fluid being fed to piston side. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
