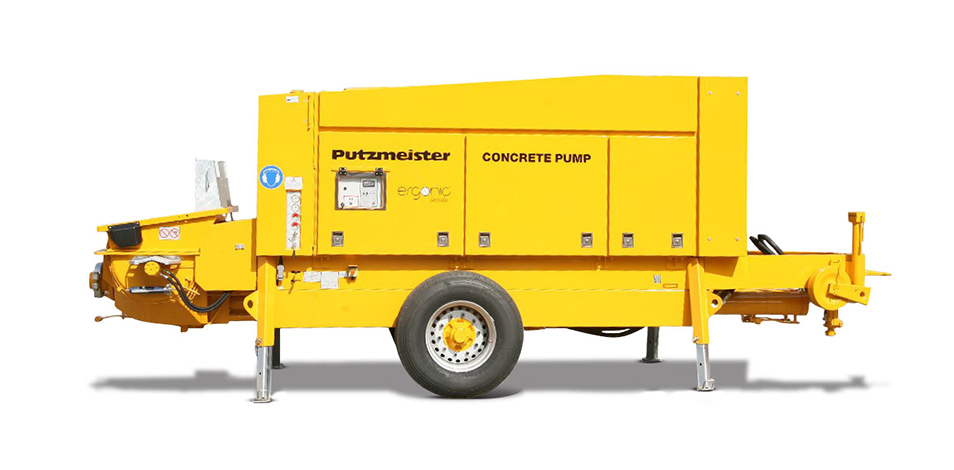

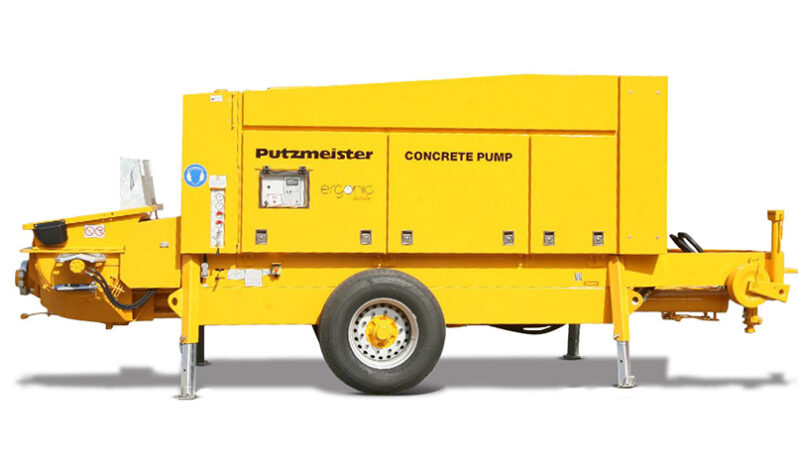

BSA 14000 HP E by Putzmeister
BSA 14000 HP E by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
PERFORMANCE
Maximum theoretical output* – rod
116 yd³/hr (89m³/hr)
Maximum theoretical output* – piston
78 yd³/hr (60m³/hr)
Maximum theoretical pressure* – rod
2,176 psi (150 bar)
Maximum theoretical pressure* – piston
3,190 psi (220 bar)^
TECHNICAL INFORMATION
Material cylinders
8″ x 83″ (200 x 2,100mm)
Variable volume
0 to full
Chromed cylinders
Standard
Hydraulic system
FFH-EL
Hydraulic system pressure
5,075 psi (350 bar)
Hydraulic cylinders
6.3″ x 3.5″ (160 x 90mm)
Outlet diameter
5.5” (ZX125)
Maximum size aggregate
2.5″ (63mm)
VALVE & HOPPER
S-Valve
S-1812D
Hopper model
RS 905HF
Hopper capacity
21.2 ft³ (600L)
Hopper height
51″ (1,295mm)
Maximum strokes per minute – rod
22
Maximum strokes per minute – piston
15
DIMENSIONS
Trailer type
Tandem axles
Length
308″ (7,830mm)
Width
101″ (2,560mm)
Height
142″ (3,600mm)
Approximate weight
23,840 lbs (10,810kg)
Type of Engine
Motor diesel
Caterpillar
Power
470 kW
* Values for hydraulic fluid being fed to piston side. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
