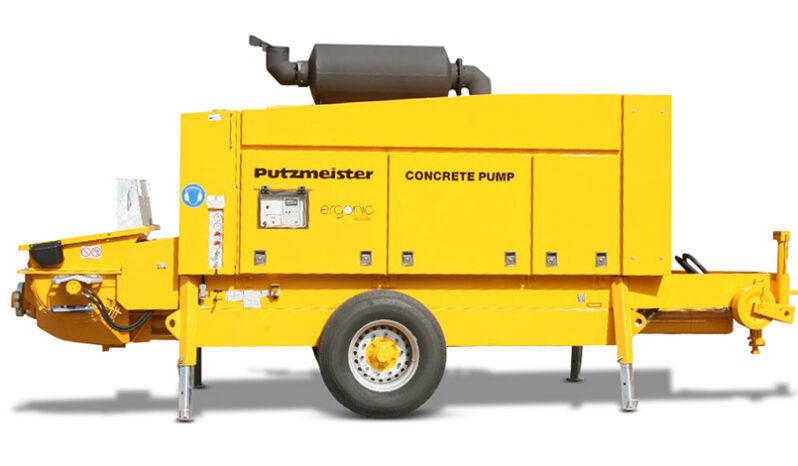

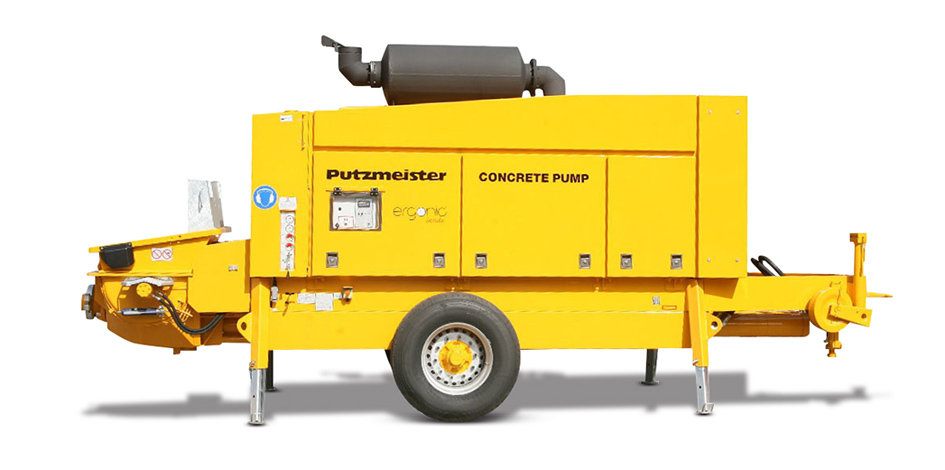

BSA 14000 HP D4 8 by Putzmeister
BSA 14000 HP D4 8 by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
PERFORMANCE
Maximum theoretical output* – rod
133 yd³/hr (102m³/hr)
Maximum theoretical output* – piston
92 yd³/hr (70m³/hr)
Maximum theoretical pressure* – rod
2,176 psi (150 bar)
Maximum theoretical pressure*^ – piston
3,190 psi (220 bar)
TECHNICAL SPECIFICATION
Material cylinders
8″ x 83″ (200 x 2,100mm)
Variable volume
0 to full
Chromed cylinders
Standard
Hydraulic system
FFH-EL
Hydraulic system pressure
5,075 psi (350 bar)
Hydraulic cylinders
6.3″ x 3.5″ (160 x 90mm)
Outlet diameter
ZX125
Maximum size aggregate
2.5″ (63mm)
VALVE & HOPPER
S-Valve
S-1812D
Hopper model
RS 905HF
Hopper capacity
21.2 ft³ (600L)
Hopper height
51″ (1,295mm)
Maximum strokes per minute – rod
26
Maximum strokes per minute – piston
18
DIMENSIONS
Trailer type
Tandem axles
Length
308″ (7,830mm)
Width
101″ (2,560mm)
Height
142″ (3,600mm)
Approximate weight
25,340 lbs (11,600kg)
POWER
ENGINE SPECIFICATIONS
* Values for hydraulic fluid being fed to piston side. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
