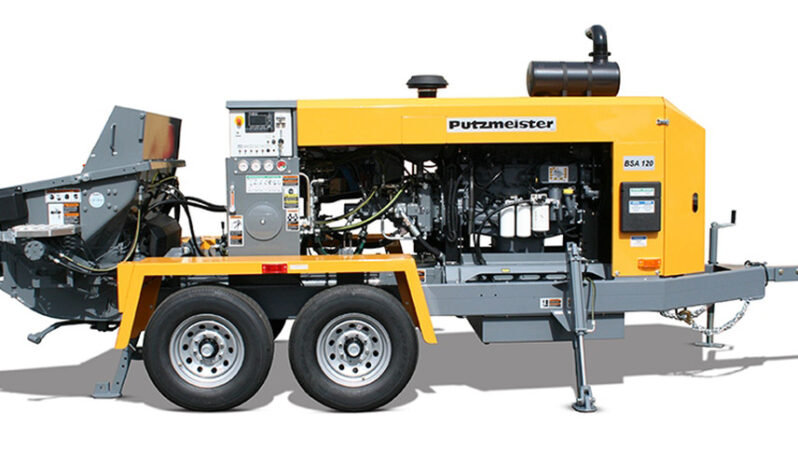

BSA 120 D by Putzmeister
BSA 120 D by Putzmeister
Concrete Pump Details
TECHNICAL SPECIFICATIONS
PERFORMANCE
Maximum theoretical output* – rod
114 yd³/hr (87m³/hr)
Maximum theoretical output* – piston
77 yd³/hr (59m³/hr)
Maximum theoretical pressure* – rod
1,030 psi (71 bar)
Maximum theoretical pressure* – piston
1,540 psi (106 bar)
TECHNICAL INFORMATION
Material cylinders
8″ x 55″ (200 x 1,400mm)
Variable volume
0 to full
Chromed cylinders
Standard
Hydraulic system
FFH-HD
Hydraulic system pressure
5,075 psi (350 bar)
Hydraulic cylinders
4.3″ x 2.5″ (110 x 63mm)
Outlet diameter
6″ (150mm) HD/SK150
Maximum size aggregate
2.5″ (63mm)
VALVE & HOPPER
S-Valve
S-2015D
Hopper model
RS 905A
Hopper capacity
19.4 ft³ (500L)
Hopper height
52″ (1,321mm)
Maximum strokes per minute – rod
37
DIMENSIONS
Trailer type
Tandem axles
Length
236″ (5,993mm)
Width
75″ (1,900mm)
Height
95″ (2,408mm)
Approximate weight
9,100 lbs (4,130kg)
Values for hydraulic fluid being fed to piston side. All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
