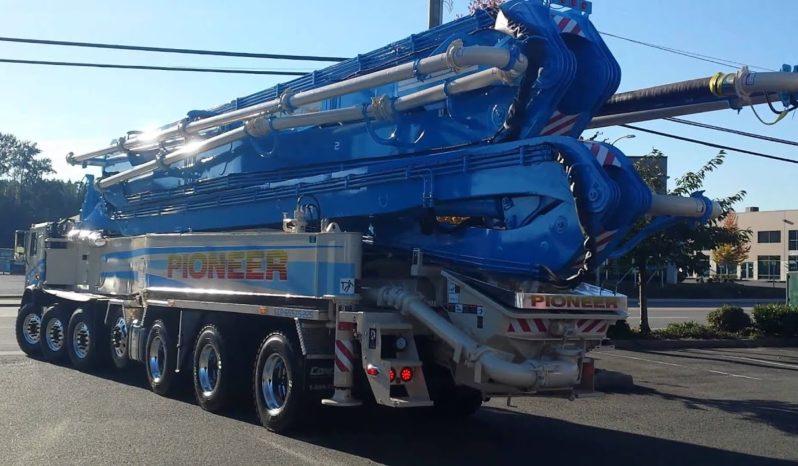

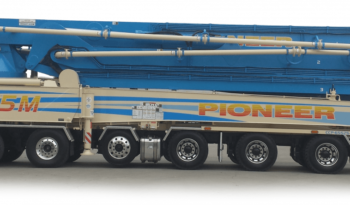

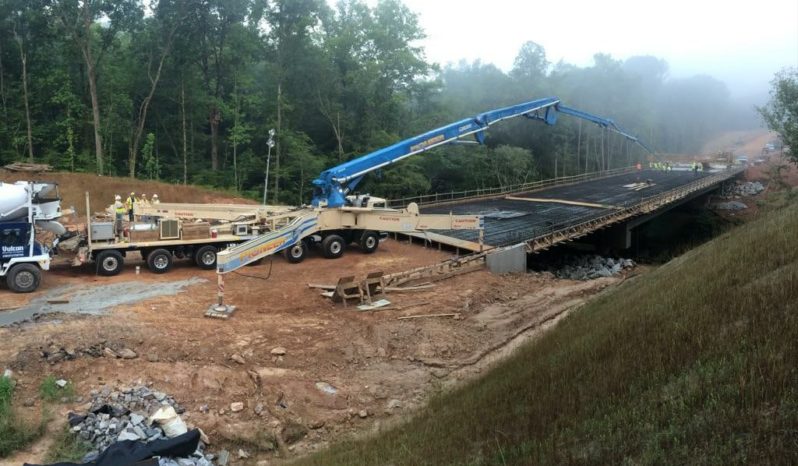

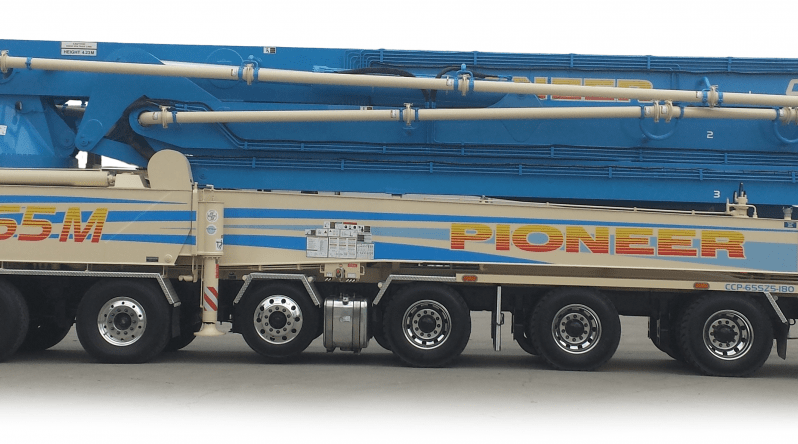

65m Z FOLD by Concord

$0

65m Z FOLD by Concord

ADDED: November 06, 2019

Concrete Pump Details

Boom Specifications
Condition
New Pump
Make
Concord
Outrigger
All Hydraulic
Sections
5 sections
Vertical Reach
65m
Reach From Front
57'.6 (189')
Unfolding Height
13.5m (44')
Front Spread
13.7m (44′ 10″)
Pump Specifications
Output: Rod Side
N/A
Pressure: Piston Side
87.5 (1269 PSI)
Concrete Cylinder Diameter
230 Mm X 2100 Mm
Concrete Cylinder Type
Hard chromed
Stroke Length
2100mm or (9″ X 83″)
S-tube Size
9" x 7"
Main Oil Pump
Rexroth Hydromatic
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
Switching System
N/A
Hopper Capacity
600 liter
Number of Strokes/Min
30
Output Control Range
237 Yd³/Hr 180 M³/Hr
General Specifications
Boom Control Valve
N/A
Vibrator
Standard
Water Pump
N/A
Water Tank
N/A
Seller Note

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC, Autec or Scanreco wireless remote
  • Boom light kit
  • Side panel working lights
  • Outrigger pads (4)
  • 4 meter (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling
  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 clean out sponges
  • Clean up scraper
  • 25ft water hose with nozzle
  • 2 user/parts manuals
