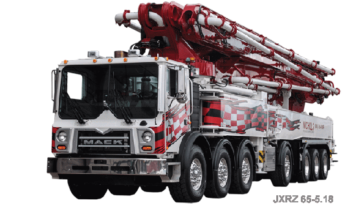

65m 5 SECTION RZ by Alliance


65m 5 SECTION RZ by Alliance

Concrete Pump Details

Boom Specifications
5 sections
Vertical Reach
64.3 m (210'11")
Reach From Front
Unfolding Height
16.8 m (55')
All Hydraulic, Swingout

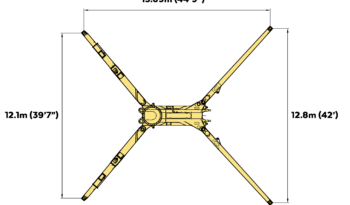

Front Spread
12 m (39'8')
Rear Spread
12.8 m (42")
Pump Specifications
Concrete Cylinder Diameter
Concrete Cylinder Diameter
Cylinder Stroke Length
2100 mm (83")
Number of Strokes/Min
Main Oil Pump
Rexroth Hydromatic
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
General Specifications
Water Tank
800 L (211 G)
Seller Note


For the demands of the largest construction sites, the 65 Meter 5 Section answers the call! Capable of pumping concrete for stadiums, shopping malls, and other large projects, operators can trust that the 65 Meter will get the job done.

Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
