63z by Putzmeister

$0

63z by Putzmeister

ADDED: November 07, 2019

Concrete Pump Details

Boom Specifications
Condition
New Pump
Make
Putzmeister
Outrigger
Hydraulic, Swingout
Sections
5 sections
Vertical Reach
62.10m (203'9")
Reach From Front
53.4m (175'2")
Unfolding Height
23.01m (75'6")
Front Spread
12.10 (39'8")
Pump Specifications
Output: Rod Side
160m 3/hr (210 yd3/hr)
Pressure: Piston Side
85 bar (1233 psi)
Concrete Cylinder Diameter
230mm (9")
Concrete Cylinder Type
N/A
Stroke Length
2,100mm (83")
S-tube Size
N/A
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
N/A
Switching System
N/A
Hopper Capacity
N/A
Number of Strokes/Min
31
Output Control Range
N/A
General Specifications
Boom Control Valve
N/A
Vibrator
N/A
Water Pump
N/A
Water Tank
N/A
Seller Note

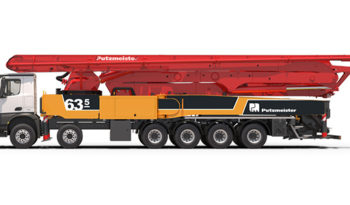

TRUCK-MOUNTED CONCRETE BOOM PUMP 63Z-METER

LOW SPEED STEER ASSIST SYSTEM INCREASES MANEUVERABILITY

Who says you can’t have reach and excellent maneuverability? When you need a big machine with excellent maneuverability, the 63Z is your choice. The versatile five-section Z-Fold boom has 203 feet 9 inches of vertical reach on a chassis with rear steering. Putzmeister’s Low Speed Steer Assist is the first of its kind – three computer controlled steering axles in the front and two in the rear provide a very tight turning radius of only 58 feet 6 inches.
