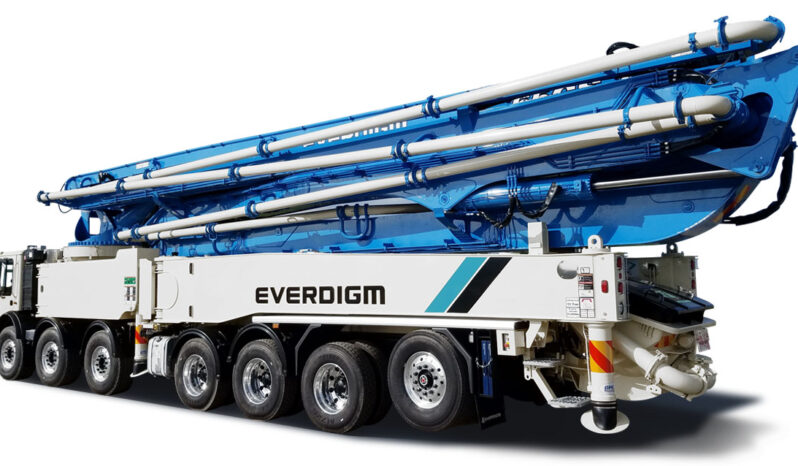

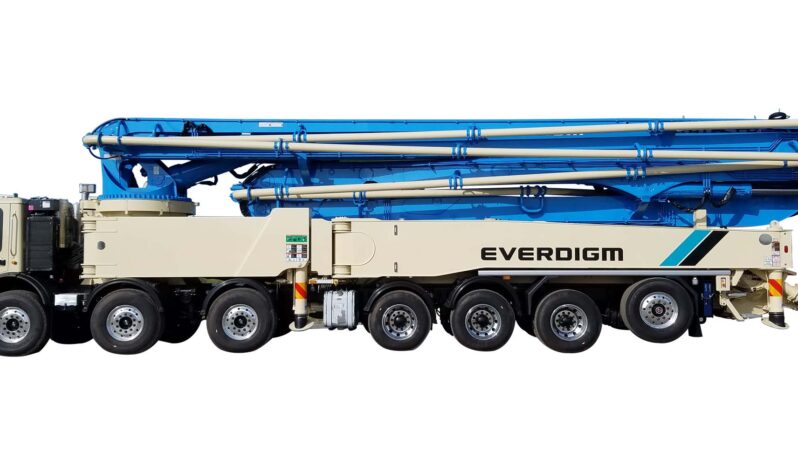

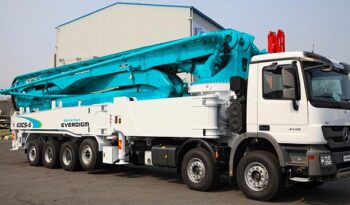

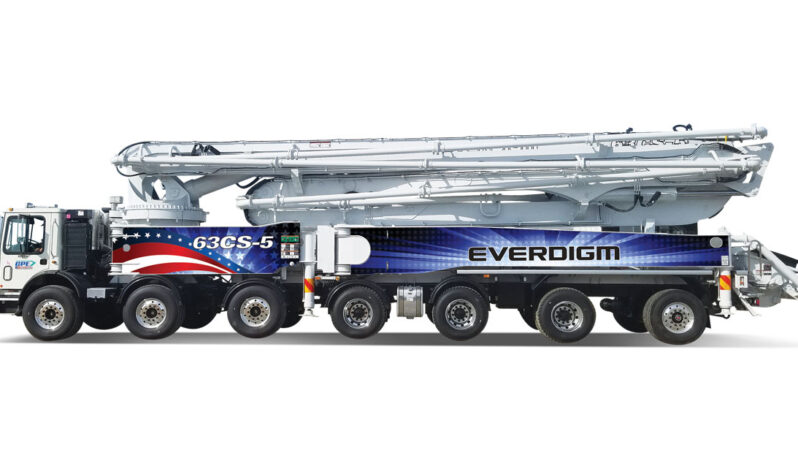

63CS by CPE America

Concrete Pump Details

Boom Specifications
Manufacturer
Everdigm
Condition
New
Sections
5 sections
Vertical Reach
62.1m (203'7")
Reach From Front
N/A
Unfolding Height
13m (190'6")
Outrigger
Hydraulic
Front Spread
11. 05m (36'2")
Rear Spread
14.54m (47'7")
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2100mm-or-9-x-83
Number of Strokes/Min
30
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
General Specifications
Water Tank
N/A
Seller Note

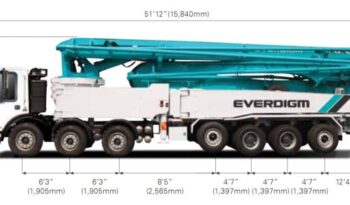

dimension

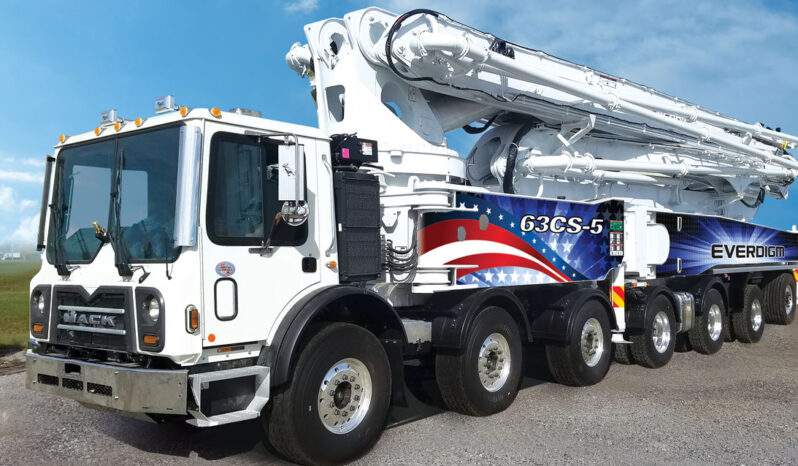

Dimensions will vary with different truck makes, models and specifications. Varies with options selected. Based on Model MACK MRU 613 with 2116 pump cell. Weights are approximate and include pump, boom, truck, driver and full fuel.

BOOM

Folding type:  5-section RZ-folding

Max. vertical reach: 203’7”(62.1m)

Max. horizontal reach: 190’6”(58.1m)

Max. depth reach: 149’6”(45.6m) (incl. End hose 3m)

Unfolding height: 42’7”(13m)

Slewing angle:  360deg.

End hose length:  10’(3m)

Delivery pipe dia: 5”(125mm)

PUMP

Pump cell:  2116

Control system:  Closed Free Flow Hydraulic

Main pump:  A4VG125x2

Concrete cylinder (mm):  9”x83” (230×2,500mm)

Strokes No: (per min.) 30

Concrete output*:  210yd3/h (160m3/h)

Concrete pressure*:  1,233psi (85bar)

Transfer tube type:  S-Tube, S2318 (Dia. 230-180mm)

Volume of hopper: 158gal (600L)

*Rod side. Ouput & pressure are theoretical data.

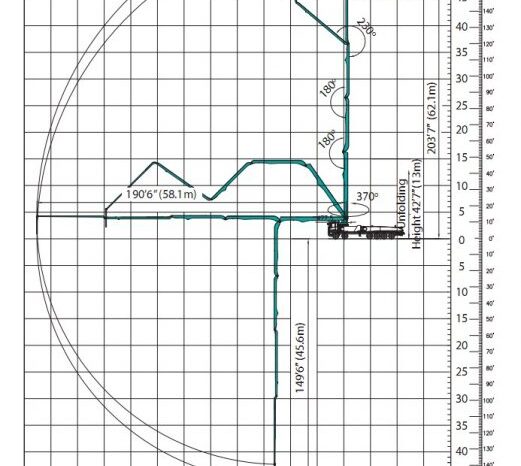

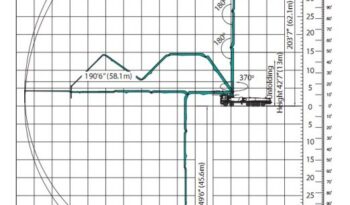

WORKING RANGE

angel

OUTRIGGER SPREAD

outeriggerspread

Front outrigger type:
X(Diagonal) Extension

Rear outrigger type:
Swing-out

UPPER BODY DIMENSION

upperbodydimension

FEATURES & SUPPLY SCOPE

OPTIONS

Inductive proximity switch with indicator

Single lip concrete piston

Hard-chromed concrete cylinders

Outrigger pilot check valves

Greasing port on boom link and pedestal

Working light on pedestal

Aluminum platform(non-skid)

Bubble gauge on both side



Flushing water pump(30bar)

Water tank (600L)

Spray nozzle with 15m hose

Auto lubrication system for hopper

Tungsten carbide for wear ring and plate

Flap elbow(180-150mm) with cleaning port

Reducing pipe(150-125mm)

Agitator motors on both side hopper

Working light on hopper

Twin wall pipe line

Working light on boom

Auto-lubrication for boom and pedestal

Safety(OSS) system

Hopper cover

Central manual lubrication for hopper

Safety device for hopper

Vibrator on hopper grid

Stainless hand rail

Auxiliary fuel tank on one side rear outrigger

Customized color

Pumps*EVERDIGM reserves the right to make changes to specifications and supply scope.

Specifications and supply scope are subject to change without prior notice.
