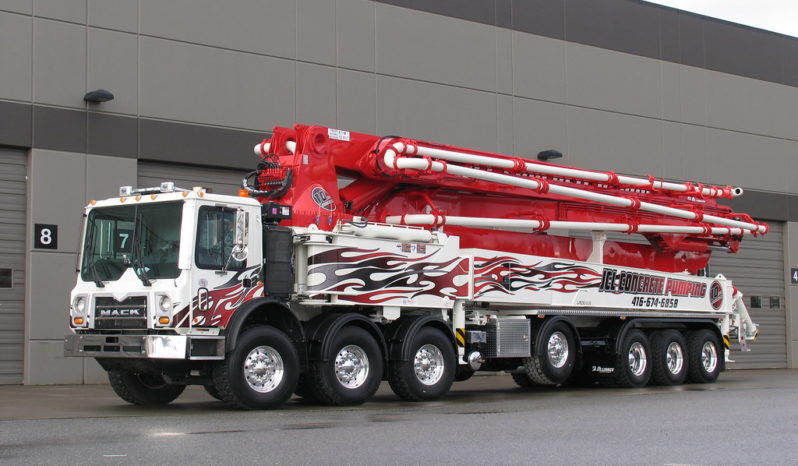

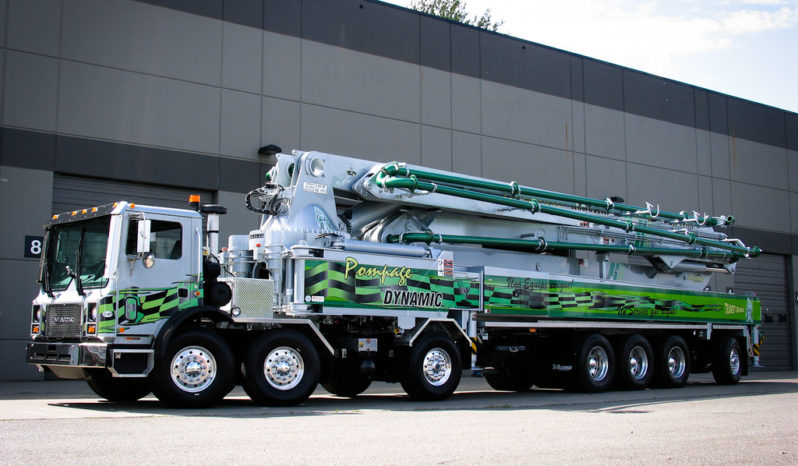

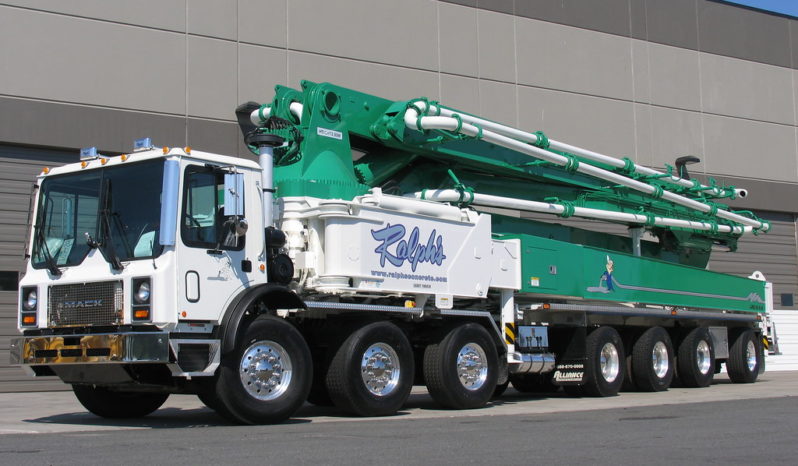

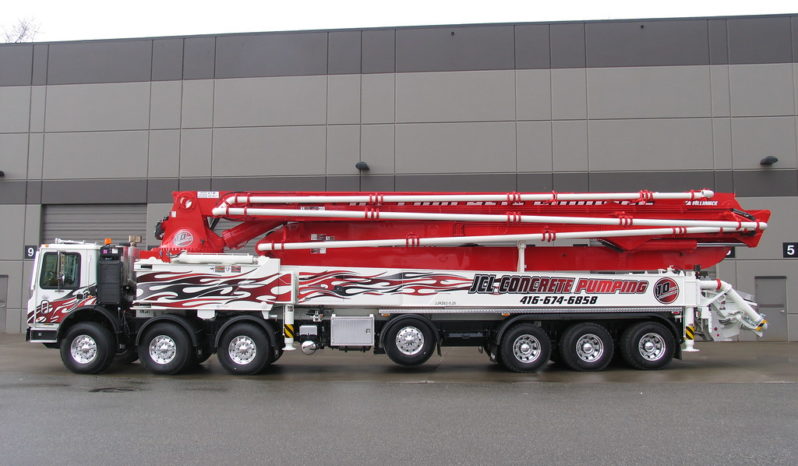

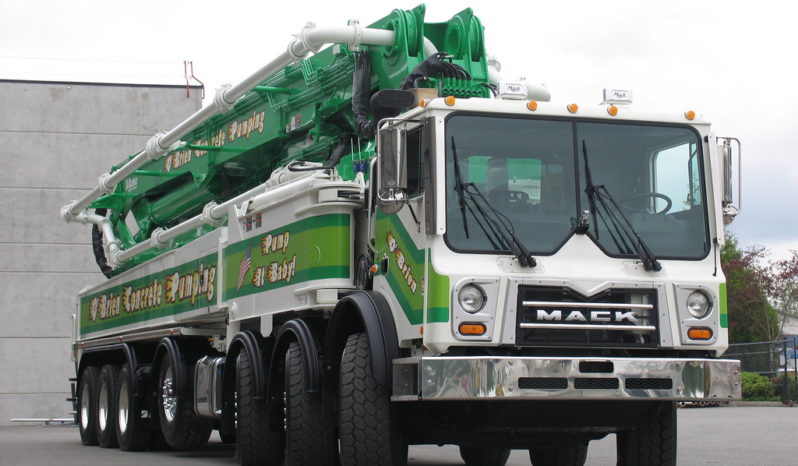

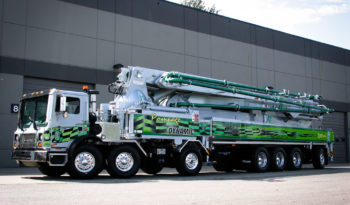

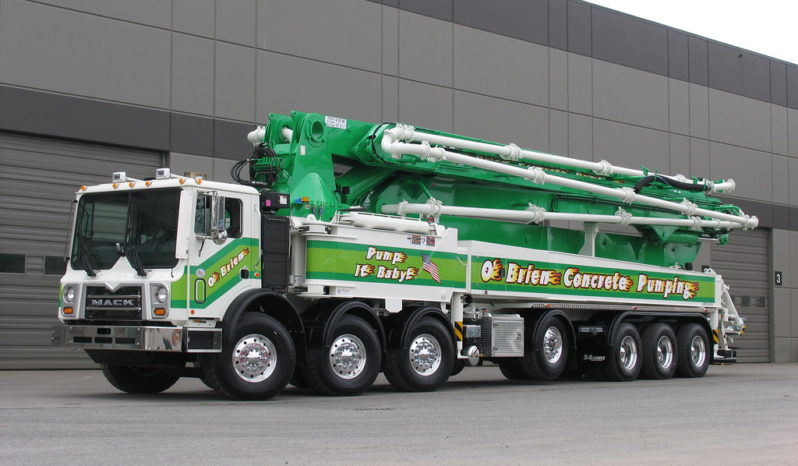

63m 5 Section RZ by Alliance

$0

63m 5 Section RZ by Alliance

ADDED: November 05, 2019

Concrete Pump Details

Boom Specifications
Condition
New Pump
Make
Alliance
Outrigger
Swingout
Sections
5 sections
Vertical Reach
62.2 m (204'1)
Reach From Front
54.9m (180'1")
Unfolding Height
12.8 m (42')
Front Spread
11.6 m (38'10")
Pump Specifications
Output: Rod Side
200 m³/h (262 yd³/h)
Pressure: Piston Side
85 bar (1233 psi)
Concrete Cylinder Diameter
260 mm (10")
Concrete Cylinder Type
Hard chromed
Stroke Length
260 mm (10")
S-tube Size
9" x 7"
Main Oil Pump
Rexroth Hydromatic
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
Switching System
Hydraulic
Hopper Capacity
Easy Clean 600L (158G)
Number of Strokes/Min
30
Output Control Range
20(26)~200m³/h (262yd³/h)
General Specifications
Boom Control Valve
Proportional (by HAWE)
Vibrator
Standard
Water Pump
Hydraulic Power 20 bar (290 psi)
Water Tank
800 L (211 G)
Seller Note

STANDARD FEATURES

For the demands of the largest construction sites, the 63 Meter 5 Section answers the call! Capable of pumping concrete for stadiums, shopping malls, and other large projects, operators can trust that the 63 Meter will get the job done.



Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
