60m Z by Concord

$0

60m Z by Concord

ADDED: November 07, 2019

Concrete Pump Details

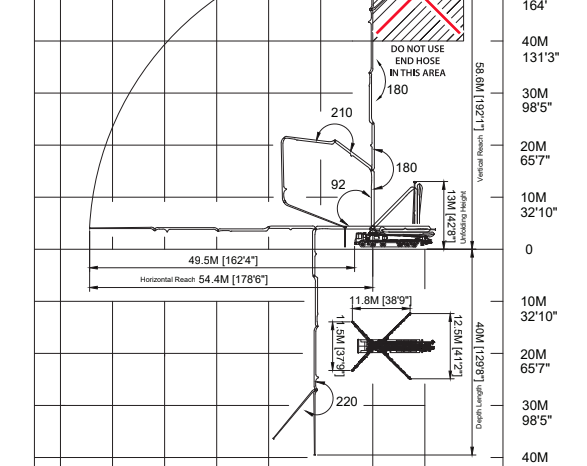

Boom Specifications
Condition
New Pump
Make
Concord
Outrigger
All Hydraulic
Sections
5 sections
Vertical Reach
58.6 m (192'1")
Reach From Front
49.9m (162'4")
Unfolding Height
13m (42'8")
Front Spread
N/A
Pump Specifications
Output: Rod Side
N/A
Pressure: Piston Side
N/A
Concrete Cylinder Diameter
230 Mm X 2100 Mm
Concrete Cylinder Type
Hard chromed
Stroke Length
N/A
S-tube Size
9" x 7"
Main Oil Pump
Twin A20VLO190
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
Switching System
Hydraulic
Hopper Capacity
600 liter
Number of Strokes/Min
30
Output Control Range
N/A
General Specifications
Boom Control Valve
N/A
Vibrator
Standard
Water Pump
N/A
Water Tank
N/A
Seller Note

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC, Autec or Scanreco wireless remote
  • Boom light kit
  • Side panel working lights
  • Outrigger pads (4)
  • 4 meter (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling
  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 clean out sponges
  • Clean up scraper
  • 25ft water hose with nozzle
  • 2 user/parts manuals
