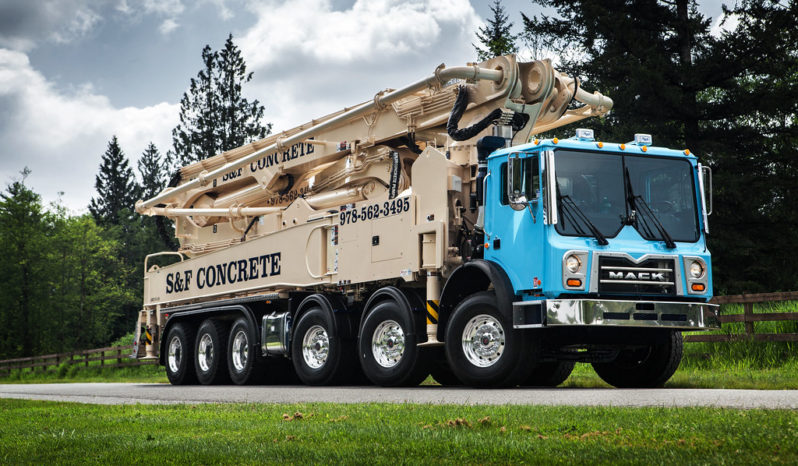

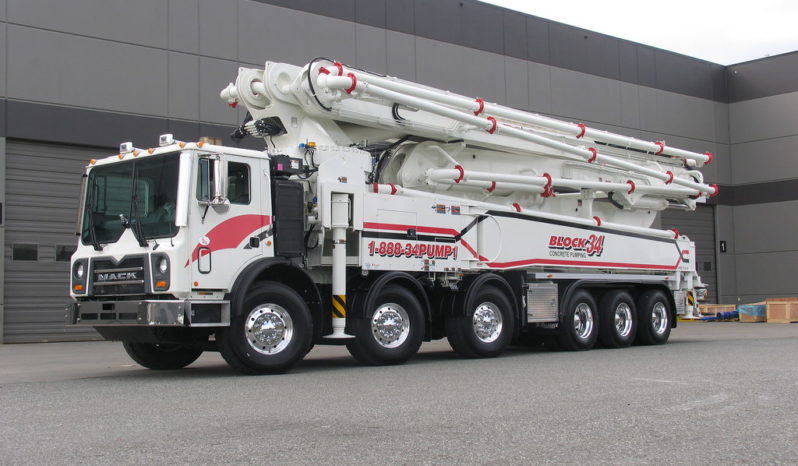

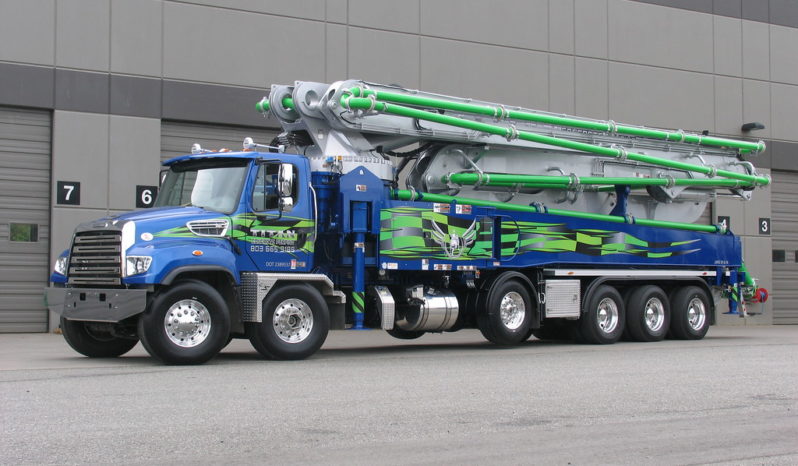

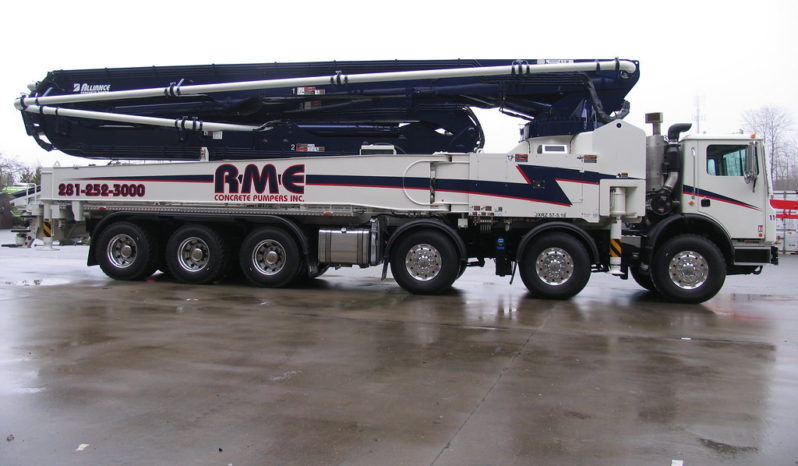

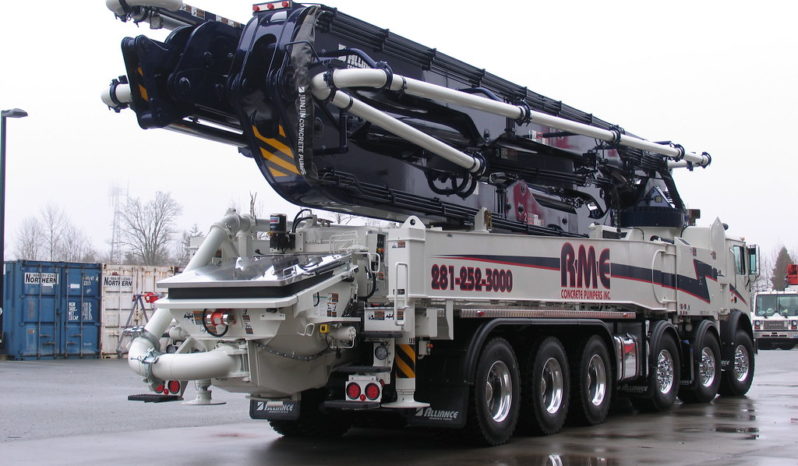

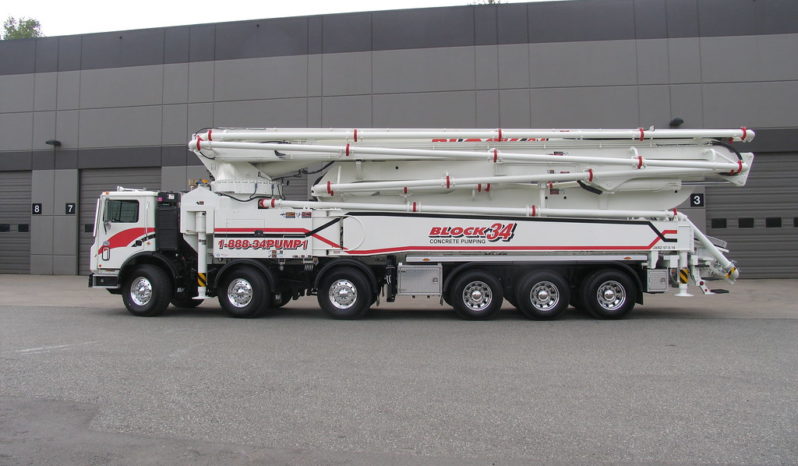

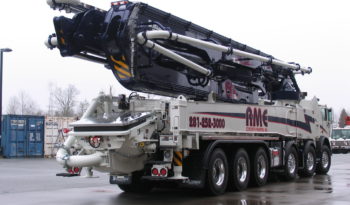

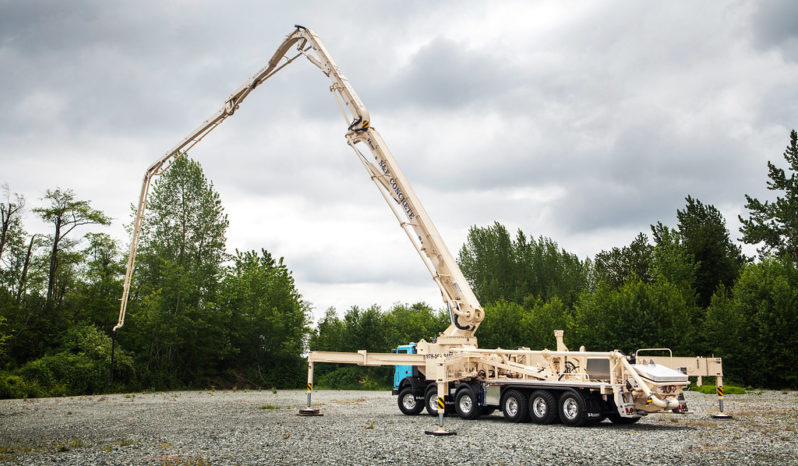

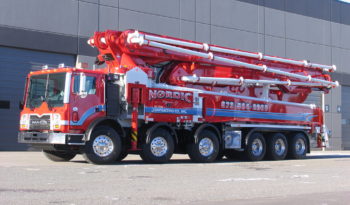

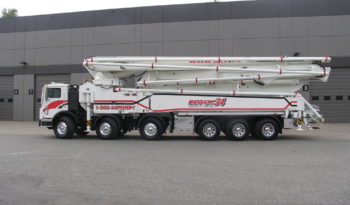

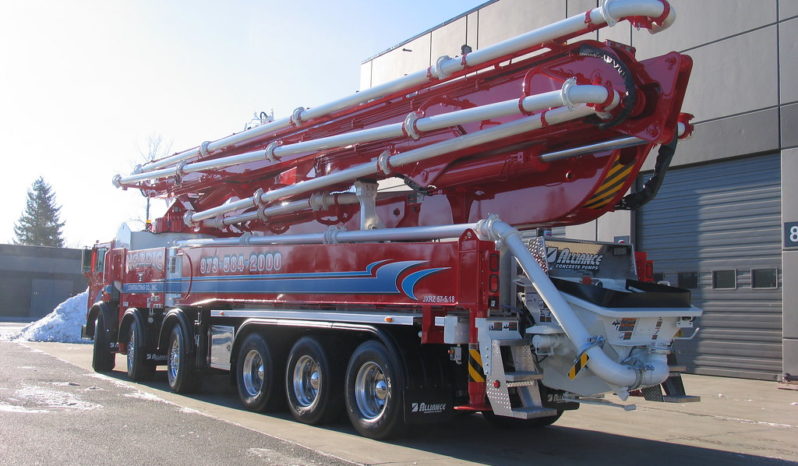

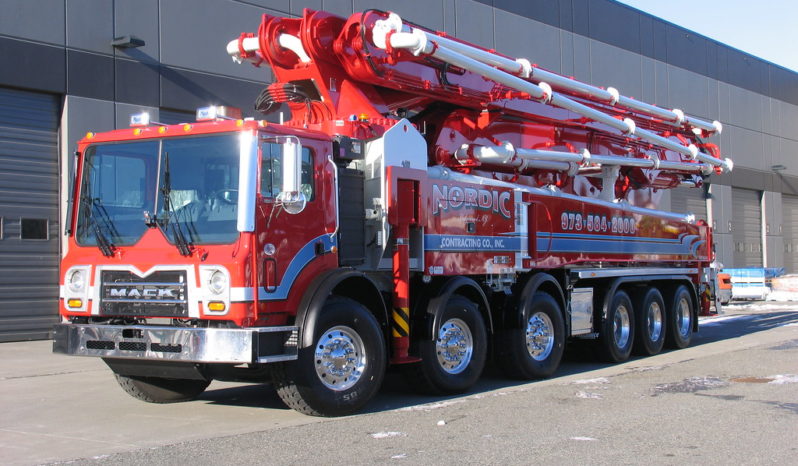

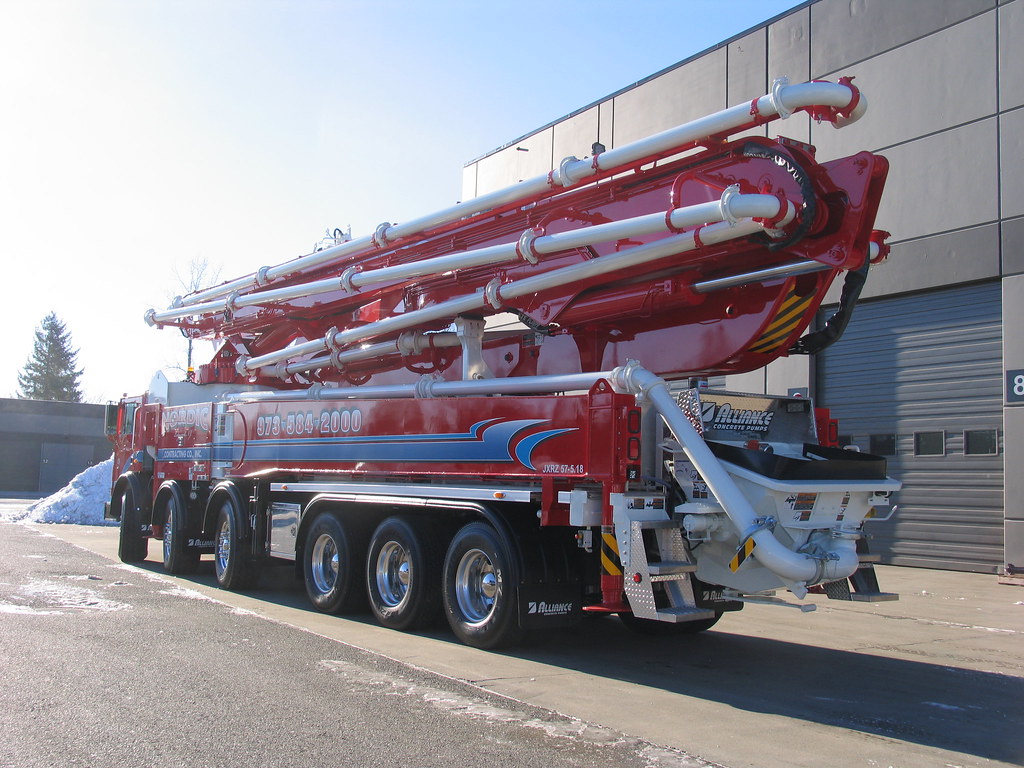

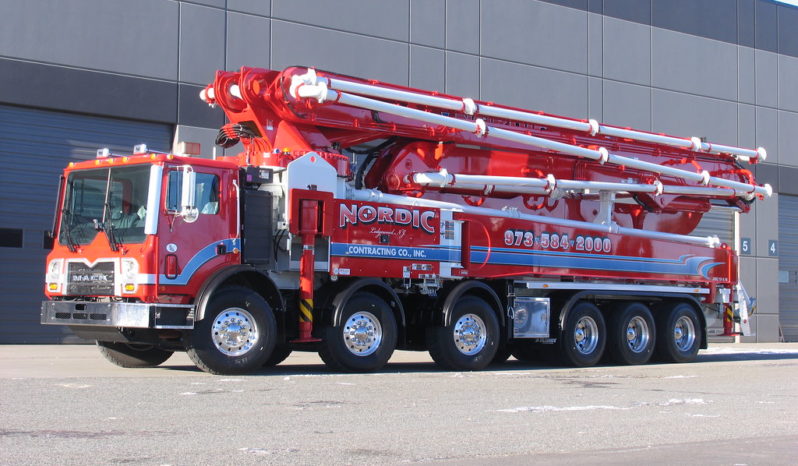

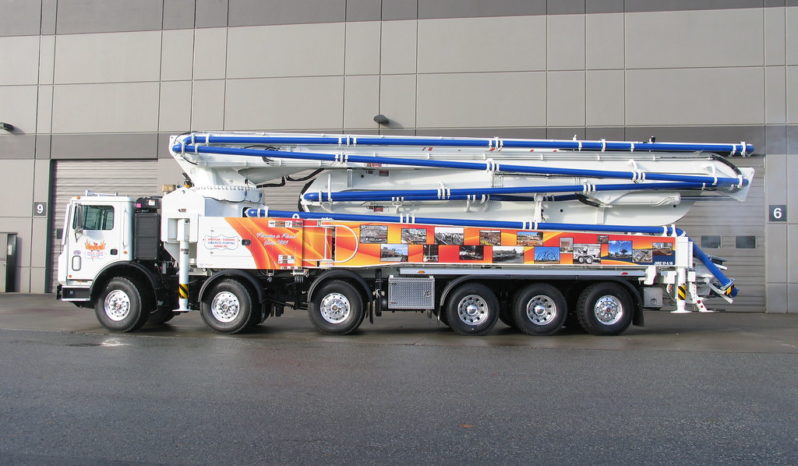

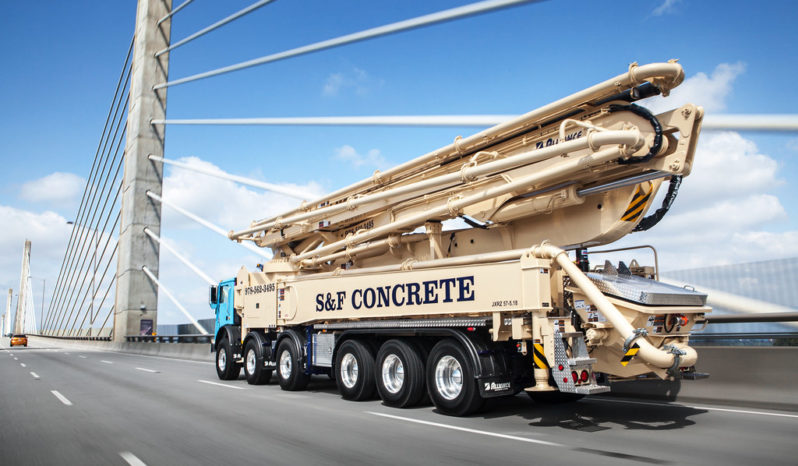

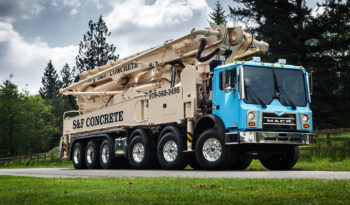

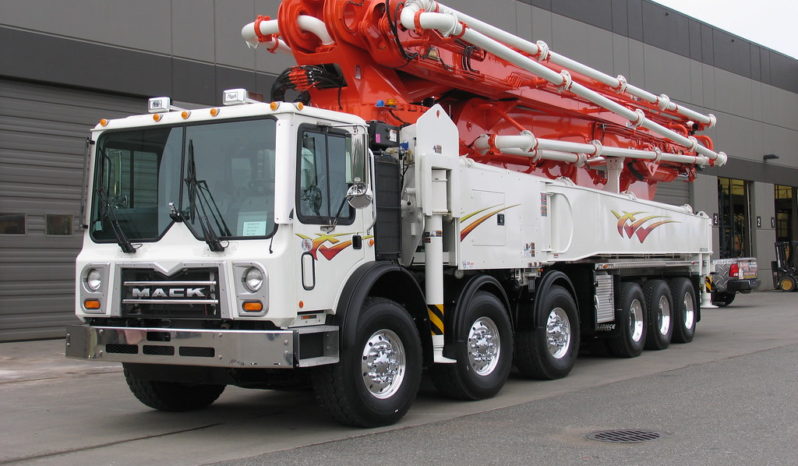

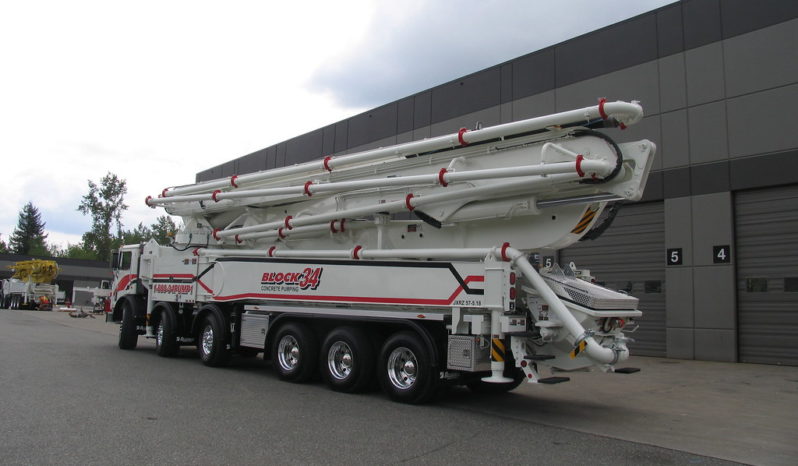

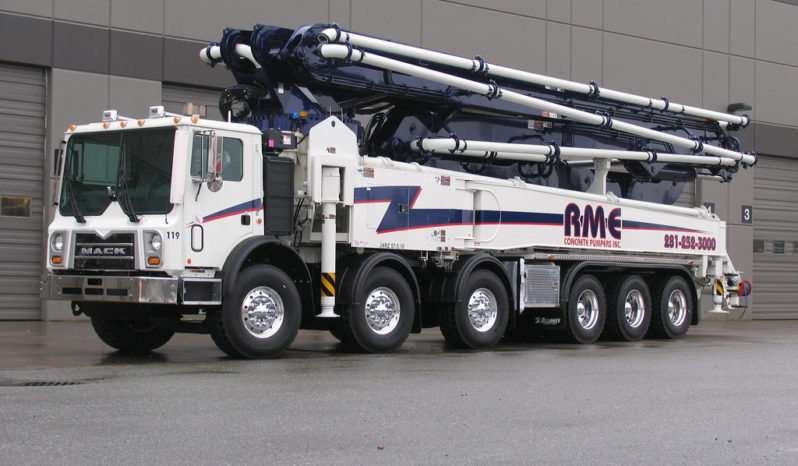

57m by Alliance


57m by Alliance

ADDED: November 05, 2019

Concrete Pump Details

Boom Specifications
New Pump
Hydraulic, X-Style
5 sections
Vertical Reach
Reach From Front
46.8m (153'7")
Unfolding Height
14.8m (48'7")
Front Spread
9.47m (31'1")
Pump Specifications
Output: Rod Side
181m³/h (235yd³/h)
Pressure: Piston Side
130bar (1886psi)
Concrete Cylinder Diameter
230mm (9")
Concrete Cylinder Type
Hard chromed
Stroke Length
2,100mm (83")
S-tube Size
9" x 7"
Main Oil Pump
Twin A20VLO190
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Switching System
Hopper Capacity
Easy Clean 600L (158G)
Number of Strokes/Min
Output Control Range
10(13)~164m³/h (215yd³/h)
General Specifications
Boom Control Valve
Proportional (by HAWE)
Water Pump
Hydraulic 20 bar (290 psi)
Water Tank
800 L (211 G)
Seller Note


57 Meter RZ-Fold X-Style Boom Pump

Designed and built in Korea, tested and approved in the European market, the state of the art 57X acheives the utmost in convenience, performance and durability.


Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
