56m Z-FOLD by Concord
Concrete Pump Details
Boom Specifications
Manufacturer
Concord
Condition
New
Sections
5 sections

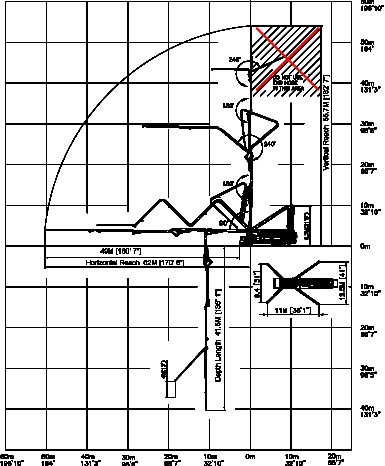

Vertical Reach
55.7m (182'7")
Reach From Front
49m (160′ 7″)
Unfolding Height
9.7m (31′ 8″‘)
Outrigger
All Hydraulic, X-Style
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
230 Mm X 2100 Mm
Cylinder Stroke Length
N/A
Number of Strokes/Min
30
Main Oil Pump
A20VLO190
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
General Specifications
Water Tank
N/A
Seller Note
Most compact 60 meter pump in the market with convenience of X-style outriggers; 5 sections Z-R fold boom, 5 inch line, 180 cubicmeters per hour.
STANDARD FEATURES
- Heat treated single wall pipe and elbows
- HBC, Autec or Scanreco wireless remote
- Boom light kit
- Side panel working lights
- Outrigger pads (4)
- 4 meters (13ft) end hose
- Magnetic working light
- System blow out cap (water)
- Hopper vibrator
- Automatic greasing system (hopper only)
- Safety sling
- Tool box w/basic repair items and testing gauge
- Spare hydraulic hose kit
- Spare sensing valves
- Spare pumping relays and fuses
- 2 clamps (125mm/ 5”)
- Grundfos water pump
- 2 clean out sponges
- Clean up scraper
- 25ft water hose with nozzle
- 2 user/parts manuals
