52m 5 Section RZ by DY

$0

52m 5 Section RZ by DY

Concrete Pump Details

Boom Specifications
Manufacturer
DY
Condition
New
Sections
5 sections
Vertical Reach
51.2m (167′ 11″)
Reach From Front
45.16m (148′ 2″)
Unfolding Height
10.4m (34′ 1″)
Outrigger
X-Style
Front Spread
9.3m (30′ 6″)
Rear Spread
12.2m (40′)
Pump Specifications
Concrete Cylinder Diameter
230 mm(9″)
Cylinder Stroke Length
2350mm(7'9")
Number of Strokes/Min
30
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
Automatic
General Specifications
Water Tank
800 L (211 G)
Seller Note

52-METER RZ CONCRETE BOOM PUMPS

The 52X-5RZ concrete boom pump offers the optimal size and range for commercial and industrial concrete pouring projects. This powerful, highly advanced, five-section concrete boom pump is equipped with a 360-degree continuous swing boom for maximum flexibility and mobility at the job site, along with innovative X-style outriggers for superior truck stability in even the most challenging work environments, making it the ideal choice for reach concrete pumping. With our 52-meter concrete boom pump you’ll be able to meet any project demand and complete jobs more quickly and efficiently than ever.



KEY 52X-5RZ FEATURES AND BENEFITS

The 52X-5RZ contains an impressive assortment of features that will add significant value to all your industrial and commercial construction projects:

  • The impressive 52-meter (167’) vertical reach enables you to pour concrete from high elevations without spilling or creating a mess on the jobsite, making this model the ideal solution for reach concrete pumping.
  • The substantial 47-meter (154’) horizontal reach of this concrete boom allows your operators to park your trucks on stable ground and extend outward to pour, which minimizes the risk of vehicles getting stuck or sinking in mud.
  • Numerous flexible chassis options make it easy to mount the 52-meter concrete boom pump on vehicles manufactured by industry leaders such as Mack, Peterbilt, Freightliner, Kenworth and Western Star. The 52 meter concrete boom pump only requires a five axle chassis due to its sleek and lightweight design.
  • We manufacture this five-section concrete boom pump from high-quality steel and using advanced robotic welding techniques to ensure maximum durability with minimal maintenance requirements.
  • The user-friendly HBC radio remote simplifies operation and increases efficiency, which saves time and boosts productivity.
  • The closed-loop hydraulic system provides smooth operation in all types of working conditions.



DY CONCRETE PUMPS CAN MEET ALL YOUR CONCRETE BOOM PUMP NEEDS

At DY Concrete Pumps, we take pride in our ability to sell high-quality products at competitive prices. Our strategic partnership with DY Korea means we can offer the world’s best concrete boom pumps to construction operations of all types throughout North America. With more than 30 years of concrete pump expertise, you can count on us to have well-designed products that will solve your biggest concrete mixing and pouring challenges and exceed your performance expectations.

With facilities in Calgary, AB, Dallas, TX, and Tampa, FL, we can provide prompt service to anywhere in North America. Whether you need technical support, start-up assistance or fast parts delivery, we’re always just a quick phone call away. Our staff also includes skilled field technicians who can provide reliable in-person support when needed.

To learn more about our five-section concrete boom pumps or to receive a customized quote, just submit our convenient online contact form today.

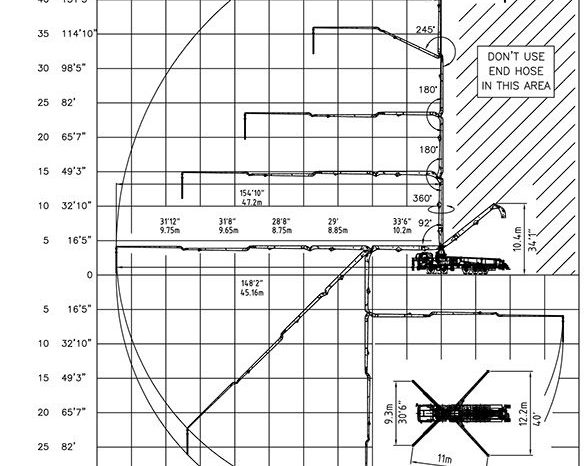

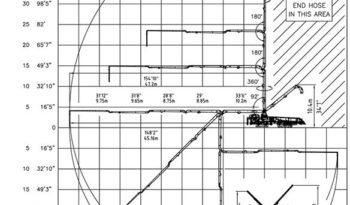

PUMP WORKING RANGE

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

OPERATOR FRIENDLY HBC RADIO REMOTE
