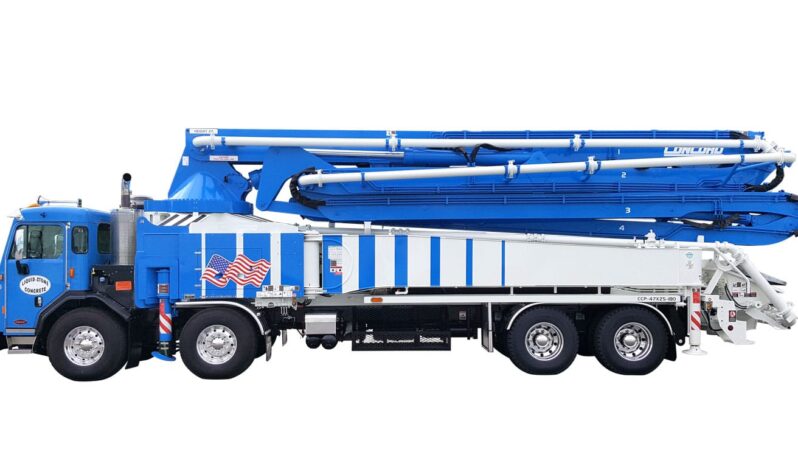

47MZ FOLD by Concord

$0

47MZ FOLD by Concord

Concrete Pump Details

Boom Specifications
Manufacturer
Concord
Condition
New
Sections
5 sections
Vertical Reach
153′ 2″ 46.2 m
Reach From Front
N/A
Unfolding Height
28′
Outrigger
N/A
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
N/A
Cylinder Stroke Length
N/A
Number of Strokes/Min
30
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
N/A
General Specifications
Water Tank
N/A
Seller Note

SNAP SHOT

Great for maneuvering in and out of tight job sites with the convenience of X-Style outriggers. 5 section Z-R fold.

PIPE SYSTEM

Single Wall System

BOOM LENGTH

47

(meters)

BOOM SECTIONS

5

(sections)

MAX OUTPUT

180

(m³/hour)

DELIVERY LINE

5″

(Diameter)

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Aluminum Outrigger pads (4)
  • 4 meters (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling
  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 clean out sponges
  • Clean up scraper
  • 25ft water hose with nozzle
  • 2 user/parts manuals

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 224 yd³/hr
  • 170 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1043 Psi
  • 72 Bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1600 Psi
  • 114 Bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A11VLO260

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2.5″
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION Z-R BOOM(VERTICAL REACH)

  • 153′ 2″
  • 46.2 m

MAXIMUM HORIZONTAL REACH

  • 140’ 7”
  • 42.8 m

REACH FROM FRONT OF TRUCK

  • 131’ 2”
  • 40 m

UNFOLDING HEIGHT

  • 28′
  • 8.6 m

ROTATION

  • 370 degrees

SECTION ARTICULATION

  • 92/180/225/180/245 (923 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 31′ 2″
  • 9.5 m

2ND SECTION

  • 25′ 7″
  • 7.8 m

3RD SECTION

  • 26′ 11″
  • 8.2 m

4TH SECTION

  • 27′ 11″
  • 8.5 m

5TH SECTION

  • 27′ 11″
  • 8.5 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • yes

FRONT SPREAD

  • 20′ 8″
  • 6.3 m

REAR SPREAD

  • 29′ 5″
  • 9 m

MAXIMUM OUTRIGGER WEIGHT

  • 28,000 kg
  • 61,810 lbs

DIAGRAMS

The following diagrams are available for viewing

WORKING DIAGRAM

WEIGHT DIAGRAM
