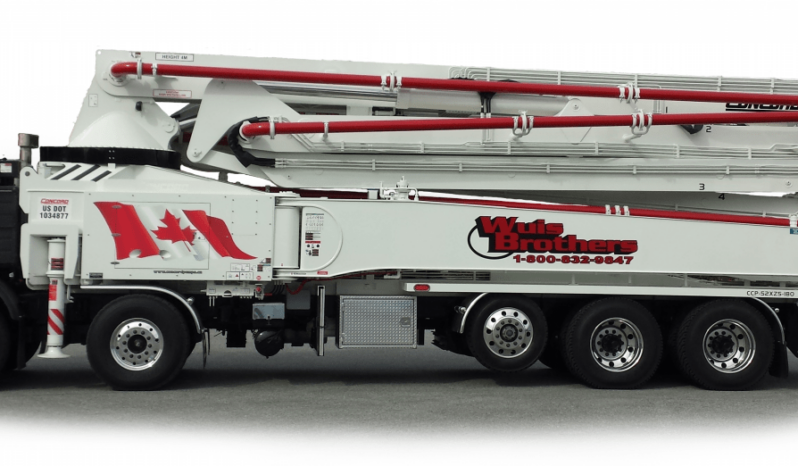

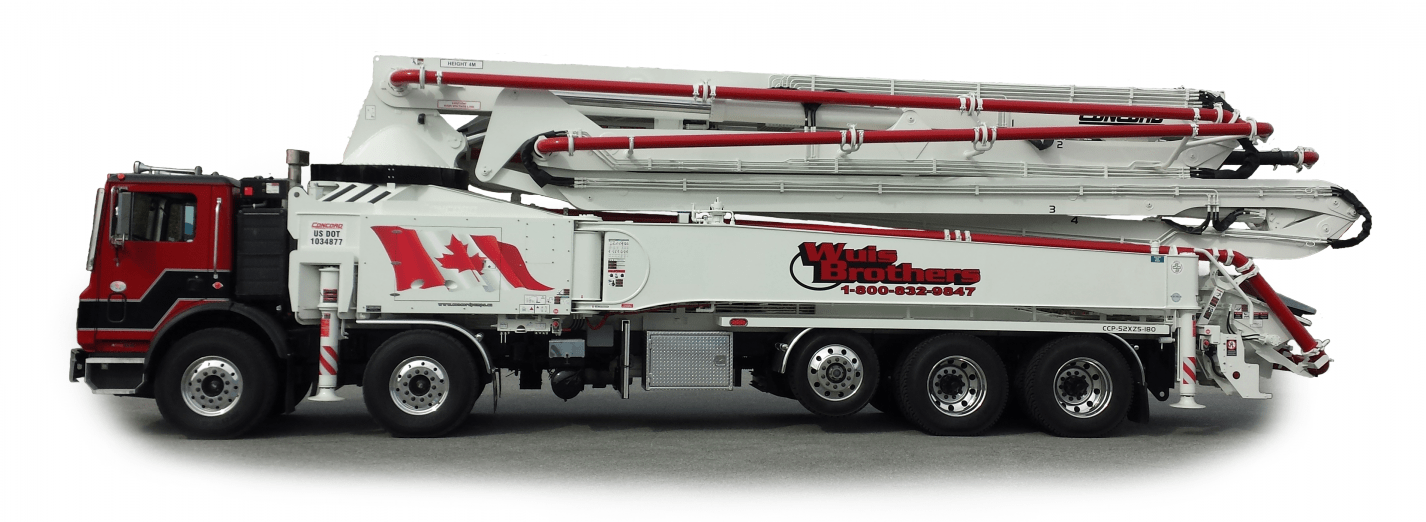

52MZ FOLD by Concord
$0
52MZ FOLD by Concord
Concrete Pump Details
Pump Specifications
Seller Note
SNAP SHOT
The most compact 52 meter in the market.
PIPE SYSTEM
Single Wall System
BOOM LENGTH
52
(meters)
BOOM SECTIONS
5
(sections)
MAX OUTPUT
180
(m³/hour)
DELIVERY LINE
5″
(Diameter)
STANDARD FEATURES
- Heat treated single wall pipe and elbows
- HBC or Autec wireless remote
- Boom light kit
- Side panel working lights
- Aluminum Outrigger pads (4)
- 4 meters (13ft) end hose
- Magnetic working light
- System blow out cap (water)
- Hopper vibrator
- Automatic greasing system (hopper only)
- Safety sling
- Tool box w/basic repair items and testing gauge
- Spare hydraulic hose kit
- Spare sensing valves
- Spare pumping relays and fuses
- 2 clamps (125mm/ 5”)
- Grundfos water pump
- 2 clean out sponges
- Clean up scraper
- 25ft water hose with nozzle
- 2 user/parts manuals
SPECIFICATIONS
The following are specifications for pump, boom, and outrigger.
PUMP SPECIFICATIONS
MAXIMUM OUTPUT
- 237 yd³/hr
- 180 m³/hr
DELIVERY CYLINDER (HARD CHROMED)
- 9″ x 83″
- 230 mm x 2100 mm
CONCRETE PRESSURE (ROD SIDE)
- 1269 Psi
- 87.5 Bar
CONCRETE PRESSURE (HEAD SIDE)
- 1885 Psi
- 130 Bar
HOPPER CAPACITY
- 21 ft³
- 600 litres
STROKES/MINUTE
- 30
S-TUBE
- 9″ x 7″
- 230 mm x 180 mm
HYDRAULIC PUMP
- Rexroth A20VLO190 Double Main Pump
CYCLING SYSTEM
- All hydraulic sensing with manual overrides
MAXIMUM AGGREGATE SIZE
- 2.5″
- 65 mm
BOOM SPECIFICATIONS
5 SECTION Z-R BOOM (VERTICAL REACH)
- 170′ 7″
- 52 m
MAXIMUM HORIZONTAL REACH
- 157′
- 48 m
REACH FROM FRONT OF TRUCK
- 142′
- 43.4 m
UNFOLDING HEIGHT
- 31′ 1″‘
- 9.5 m
ROTATION
- 370 degrees
SECTION ARTICULATION
- 92/180/240/180/245 (937 total)
DELIVERY LINE
- 5″
- 125 mm
1ST SECTION
- 34′ 8″
- 10.6 m
2ND SECTION
- 29′ 6″
- 9 m
3RD SECTION
- 29′ 10″
- 9.1 m
4TH SECTION
- 32′ 5″
- 9.9 m
5TH SECTION
- 33′
- 10.1 m
OUTRIGGER SPECIFICATIONS
ALL HYDRAULIC
- yes
FRONT SPREAD
- 29′ 5″
- 9 m
REAR SPREAD
- 36′ 1″
- 11 m
MAXIMUM OUTRIGGER WEIGHT
- 35,000 kg
- 77,161 lbs
DIAGRAMS
The following diagrams are available for viewing
