48m 5 Section RZ by DY

$0

48m 5 Section RZ by DY

Concrete Pump Details

Boom Specifications
Manufacturer
DY
Condition
New
Sections
5 sections
Vertical Reach
47.5m (155'10")
Reach From Front
40.66m (133′ 5″)
Unfolding Height
10.4m (34′ 1″)
Outrigger
X-Style
Front Spread
8.87m (29'1")
Rear Spread
9.6m (31′ 6")
Pump Specifications
Concrete Cylinder Diameter
230mm (9")
Cylinder Stroke Length
2100mm or (9″ X 83″)
Number of Strokes/Min
31
Main Oil Pump
N/A
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
N/A
Seller Note

48-METER RZ CONCRETE BOOM PUMP

The 48X-5RZ concrete boom pump offers the optimal size and range for commercial and industrial concrete pouring projects. This powerful, highly advanced, five-section concrete boom pump is equipped with a 360-degree continuous swing boom for maximum flexibility and mobility at the job site, along with innovative X-style outriggers for superior truck stability in even the most challenging work environments, making it the ideal choice for reach concrete pumping. You’ll be able to meet any project demand and complete jobs more quickly and efficiently than ever.

BRIEF SYNOPSIS OF 48-METER CONCRETE BOOM TECHNICAL SPECIFICATIONS

The 48X-5RZ weighs approximately 74,000 lbs. and is equipped with a 211-gallon water tank. The concrete boom’s reach from the front of the vehicle is 133’ 5”, the reach depth equals 111’ 11” and the boom unfolding height is 34’ 1”. The five-section concrete boom pump features the following length breakdown:



  • 1st section: 9. 5m (31’ 2”)
  • 2nd section: 7.8m (25’ 7″)
  • 3rd section: 7.7m (25’ 3”)
  • 4th section: 9m (29’ 6”)
  • 5th section: 9.4m (30’ 10″)

DY CONCRETE PUMPS CAN MEET ALL YOUR CONCRETE BOOM PUMP NEEDS

At DY Concrete Pumps, we take pride in our ability to sell high-quality products at competitive prices. Our strategic partnership with DY Korea means we can offer the world’s best concrete boom pumps to construction operations of all types throughout North America. With more than 30 years of concrete pump expertise, you can count on us to have well-designed products that will solve your biggest concrete mixing and pouring challenges and exceed your performance expectations.

With facilities in Calgary, AB, Dallas, TX, and Tampa, FL, we can provide prompt service to anywhere in North America. Whether you need technical support, start-up assistance or fast parts delivery, we’re always just a quick phone call away. Our staff also includes skilled field technicians who can provide reliable in-person support when needed.

To learn more about our five-section concrete boom pumps or to receive a customized quote, just submit our convenient online contact form today.

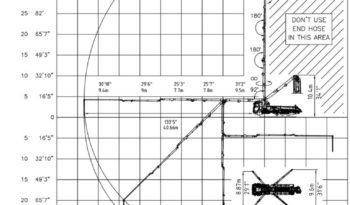

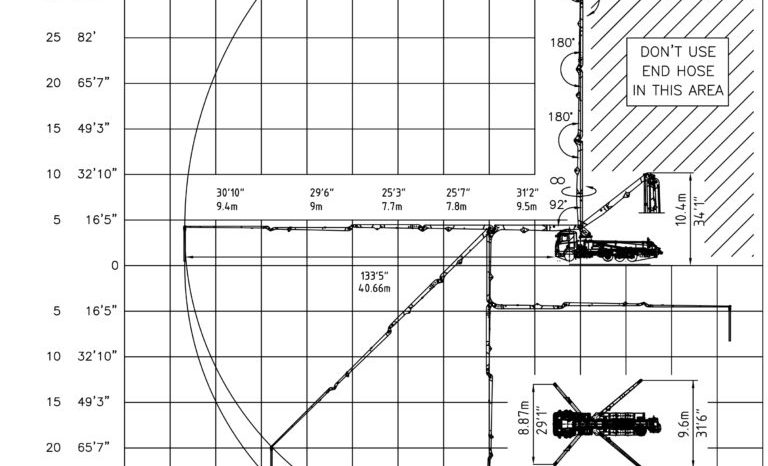

PUMP WORKING RANGE

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

OPERATOR FRIENDLY HBC RADIO REMOTE
